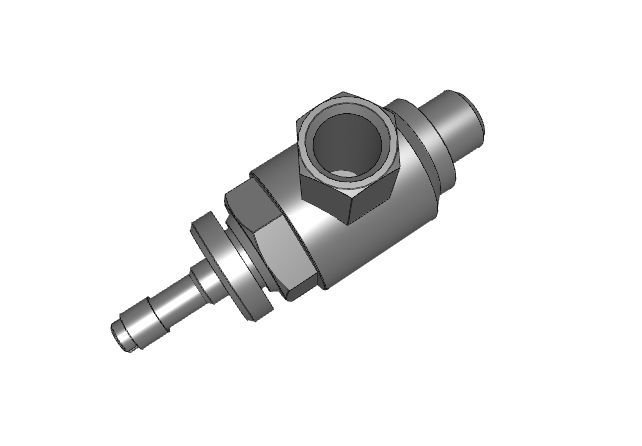

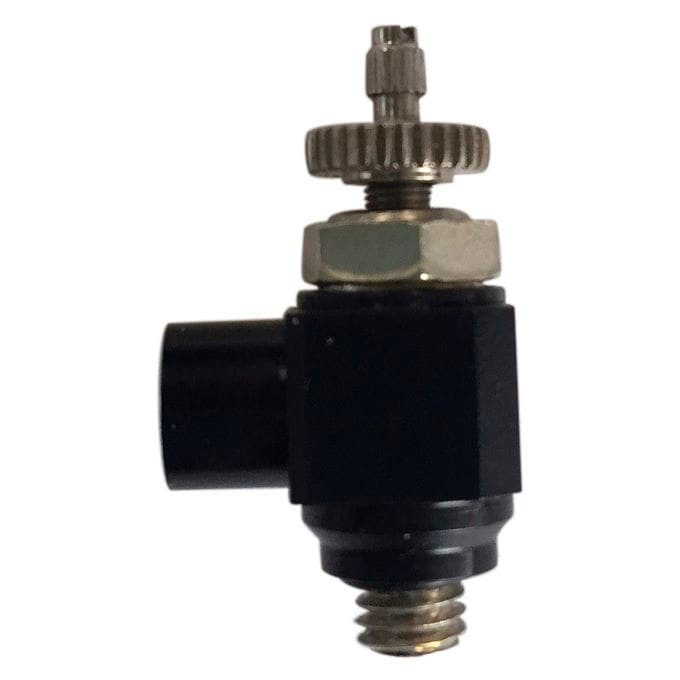

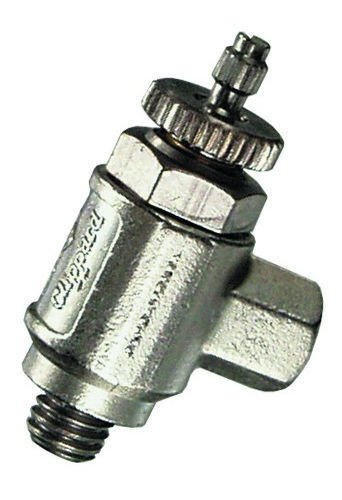

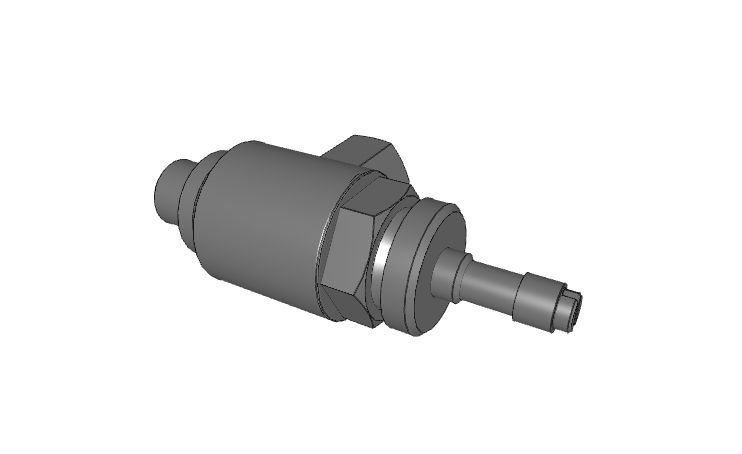

Medical valve MNV-4
Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment. Rugged and com
Overview
Adjustable control needle valves restrict flow in both directions. There are four models offered, all with #10-32 ports, but with various needle configurations to provide coarse or fine flow adjustment.
Rugged and compact design Direct, in-line or cartridge mount Screwdriver slot adjustment or knurled knob #10-32 or 1/8" NPT ports Adjustment - Screwdriver Air Flow - 140 l/min @ 100 psig Included Item(s) - Lockwashers Input PSI - 300 psig max.
Material, Body - Brass Material, Needle - Stainless Steel Material, Seals - Nitrile Max PSI - 300 psig Medium - Air, Water or Oil Mount - Direct Operating Temperature Range - 32 to 230°F (0 to 110°C) Product Line Brochure - Mechanical Valves Type (Inlet / Outlet ) - 3° (#10-32/Side Port #10-32) Unit - Imperial Weight (lbs.) - 0.0300 Electro Medical Hub can support stock checking, model guidance, accessory details, delivery options and quotation requests through WhatsApp
