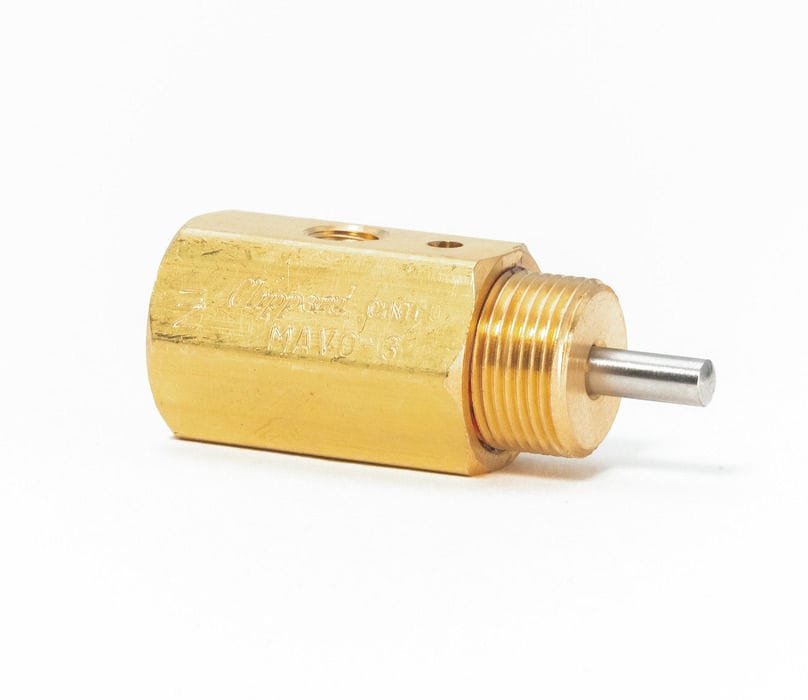

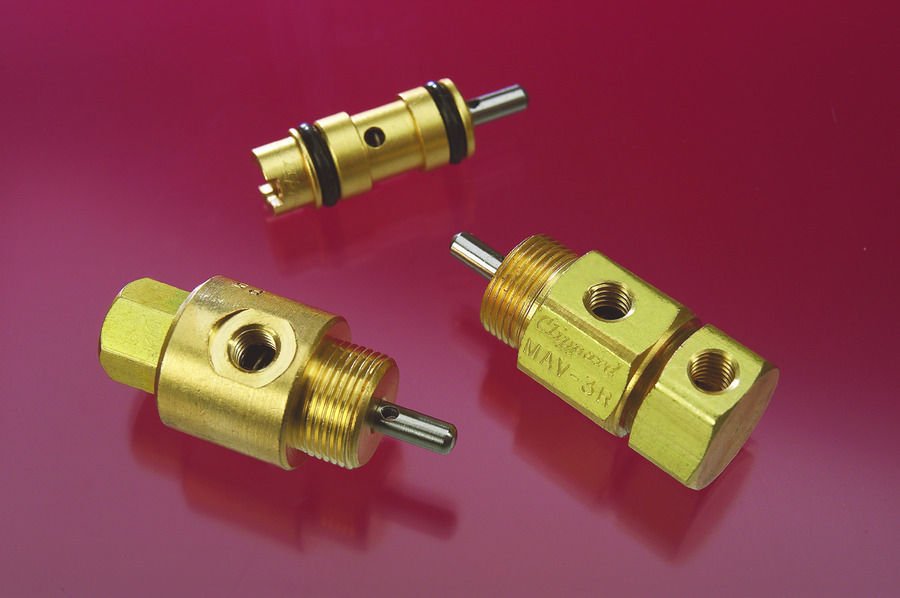

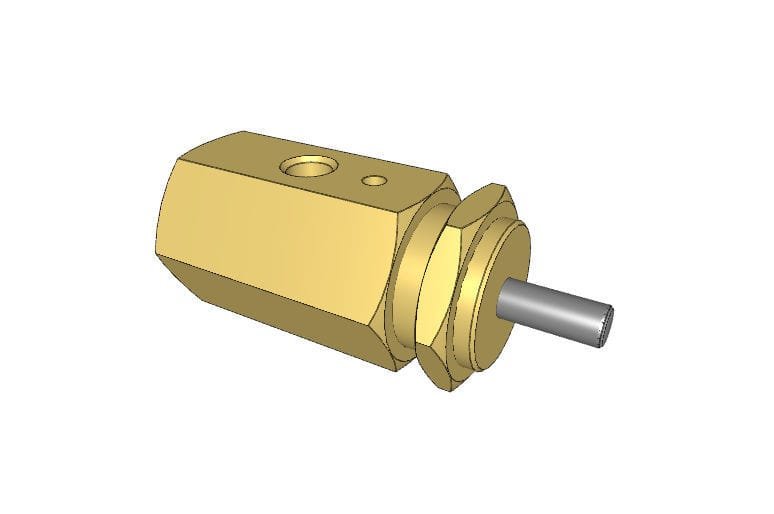

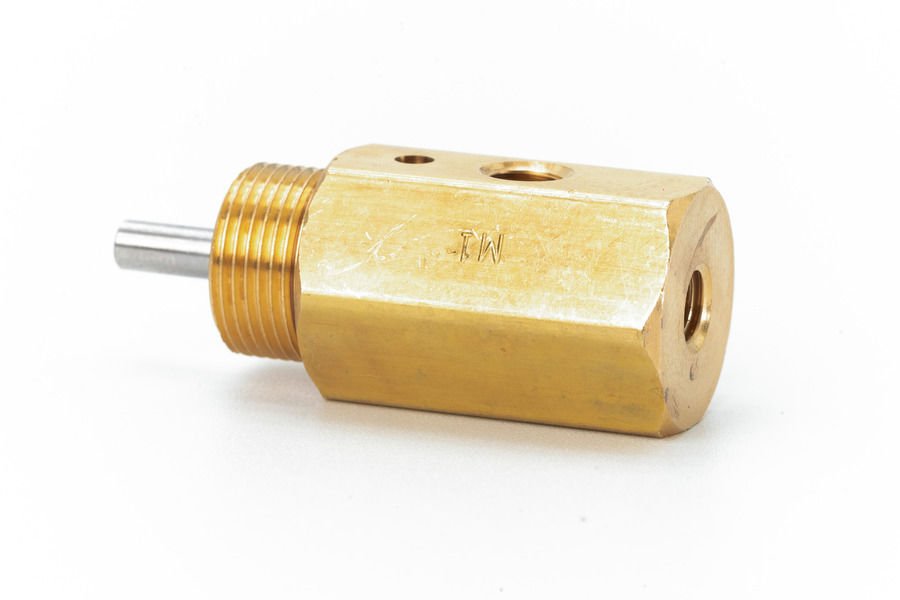

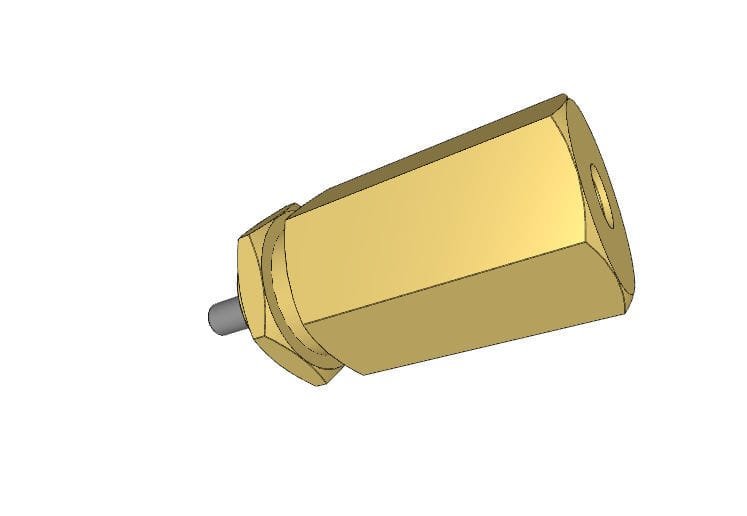

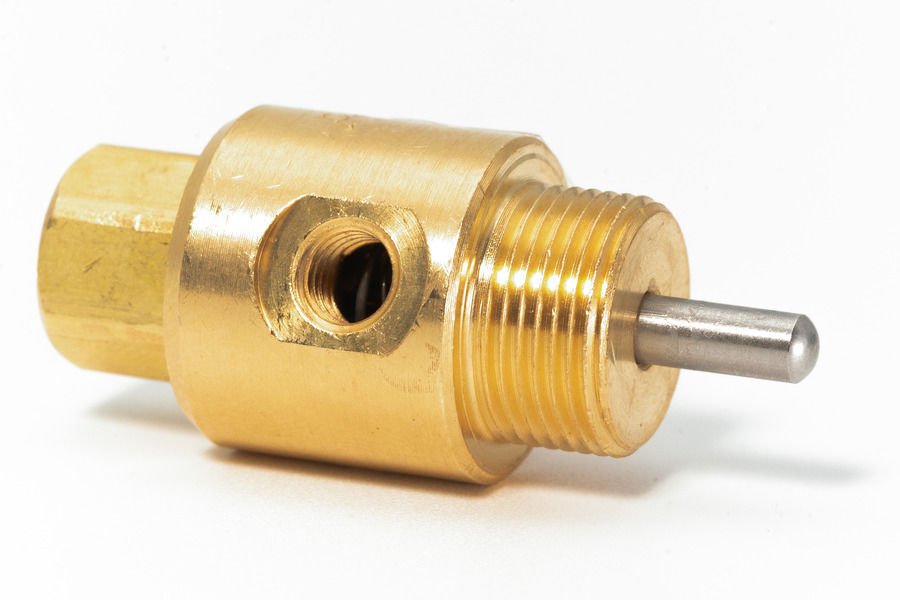

Medical valve MAV series
The MAV series are #10-32 ported valves that change their flow path when the stem is depressed or released. The 2-Way and 3-Way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versi
Overview
The MAV series are #10-32 ported valves that change their flow path when the stem is depressed or released. The 2-Way and 3-Way valves are offered in both Normally-Closed (not passing) or Normally-Open (passing) versions.
Miniature #10-32 threaded ports 2-Way, 3-Way & 4-Way valves Miniature size with high flow poppet or spool designs Exceptionally low leakage rate on poppet design Rotatable inlet available 2D File - 2D File Included Item(s) - Nut & Lockwashers Material, Body - Brass, ENP Available Material, Seals - Nitrile Std., FKM & Krytox Optional Material, Spring & Stem - Stainless Steel Medium - Air, Water or Oil Mount - #15-32 Thread.

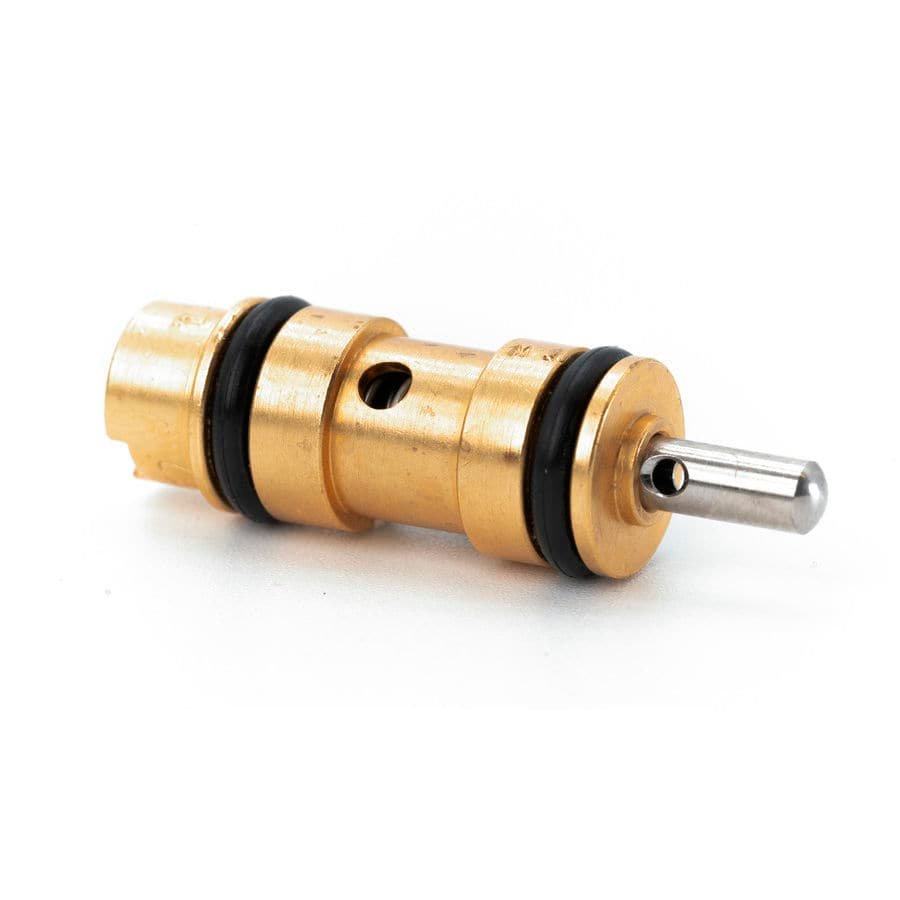

Cartridge insets into 0.375" ±0.001" bore.
Operating Temperature Range - 32 to 230°F (0 to 110°C) Product Line Brochure - Mechanical Valves Style - Stem Unit - Imperial Weight (lbs.) - 0.0300 Electro Medical Hub can support stock checking, model guidance, accessory details, delivery options and quotation requests through WhatsApp
