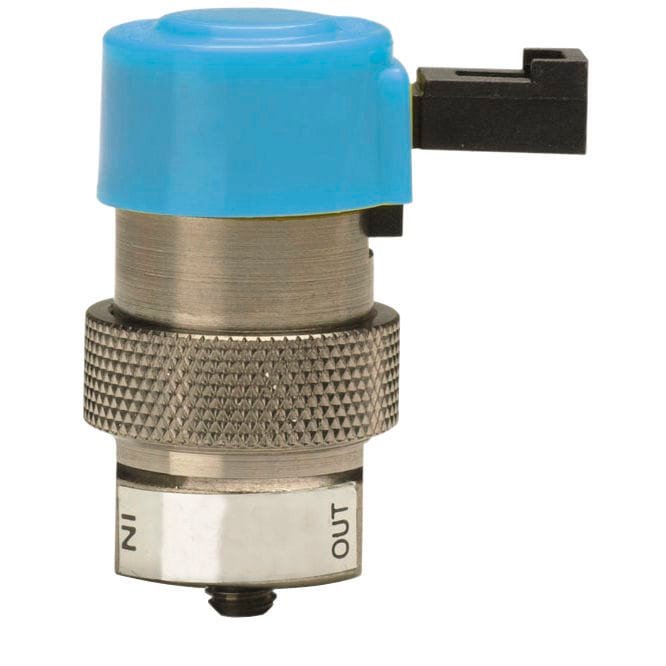

Medical valve A-ETO-3M-12
Clippard's original EV series valve design is a deceptively simple arrangement featuring a remarkably quiet, low power operation. The Clippard "spider" armature spring is the only moving part, and its motion to operat
Overview

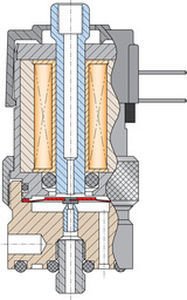

Clippard's original EV series valve design is a deceptively simple arrangement featuring a remarkably quiet, low power operation. The Clippard "spider" armature spring is the only moving part, and its motion to operate the valve is a mere 0.007" travel.
As a result, this valve features an exceptionally long life—proven to last more than 1,000,000,000+ cycles! Low voltage DC inputs move the spider, generating extremely fast response times of 5 to 10 milliseconds while using only 0.67 watts of power.
The EV series is cool running and its compact, lightweight design makes it easy to mount in small spaces.
1,000,000,000+ cycle life Low vibration & noise 100% tested Low power Fast response time Compact & lighweight Many styles & options available 2D Drawings - 2D Files Accessories - Installation Socket Torque Tool 30215 Coil Resistance - 218 Connection - Spade Terminal, 0.110" Connector - ET-C48 or ET-C120 or 3831-1-PKG Current - 0.05A Cycles - Over 1 Billion Data Sheets - Standard, High Pressure, Oxygen Clean, Analytical, Corrosion-Resistant, N.O.

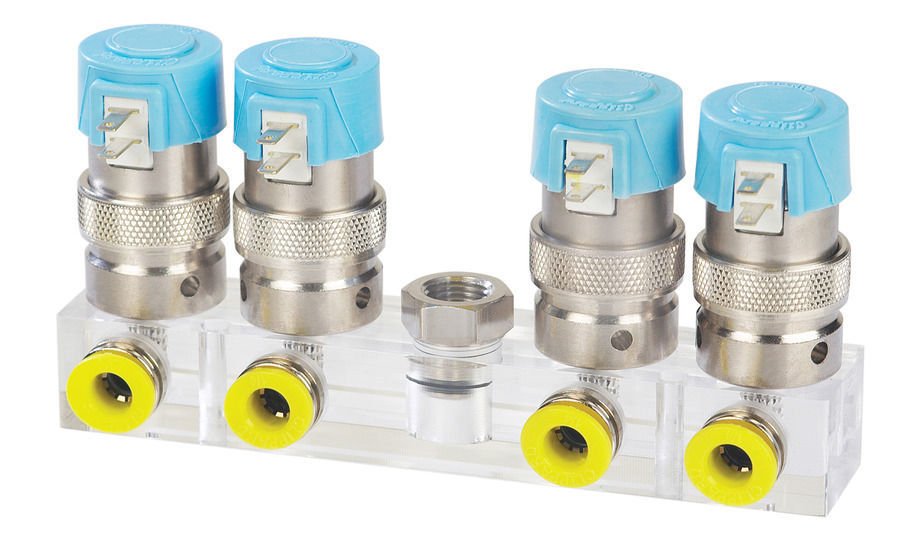

Manifold Filtration - 40 micron (recommended) Function - 3-Way Universally Ported Leak Rate - 0.1 sccm Manifolds - Single & Multi-Station, Specialized Material, Seals - FKM (O2 Clean/Analytical) Material, Spring - Nickel Alloy Material, Wetted - ENP brass, nickel alloy, stainless steel, ENP steel Max PSI - 105 (7.2 bar) Medium - Clean, Dry Air & Compatible Gases Mount - Manifold Operating Pressure - 105 psig (17 l/min @ 100 psig) Operating Temperature Range - 32 to 180°F (0 to 82°C) Operating Voltage Range - 90 to 150% Poppet Travel - 0.007" Product Line Brochure - Spider Valves Response Time - 5 to 10 milliseconds (nominal) Type - Analytical Unit - Imperial
