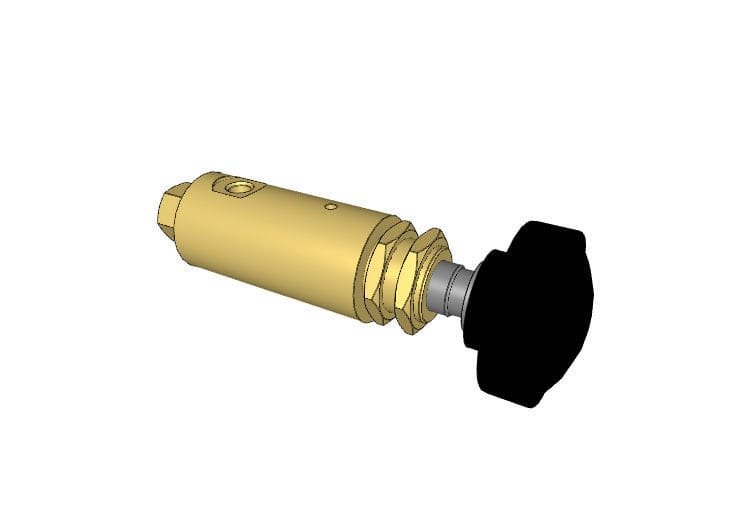

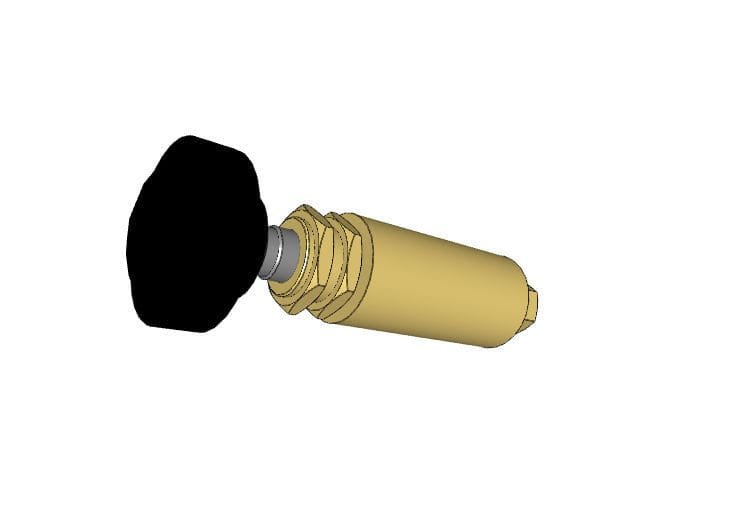

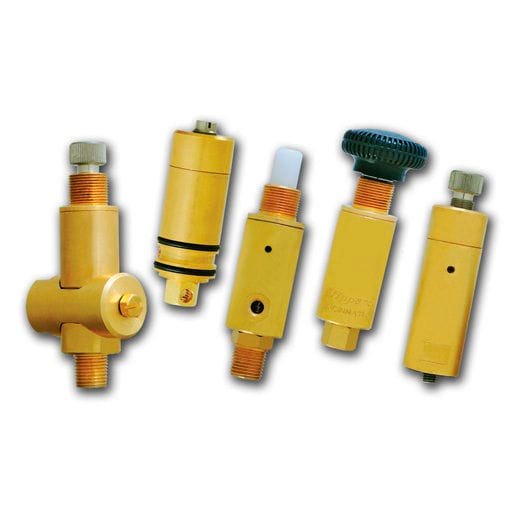

Medical gas pressure regulator MAR-1 series

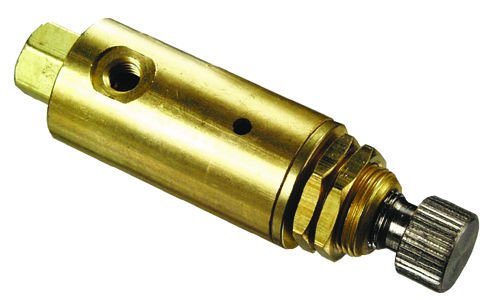

Pressure Regulator, #10-32 Ports, Knurled Knob, 10-100 psig Adjustment Knurled Knob (Std.) Force 25 lb. nominal Included Item(s) Nuts & Lockwashers Materal, Body Brass Material, Seals Nitrile (FKM Optional) Material
Overview
Pressure Regulator, #10-32 Ports, Knurled Knob, 10-100 psig Adjustment Knurled Knob (Std.) Force 25 lb. nominal Included Item(s) Nuts & Lockwashers Materal, Body Brass Material, Seals Nitrile (FKM Optional) Material, Spring & Stem - Stainless Steel Medium Air, Water* or Oil* (* non-relieving models) Mount #15/323-32 thread.
Notes Operation: As the plunger is depressed the pressure increases proportionally to the travel; when plunger is released the input is closed and the output pressure is exhausted to atmosphere. The outlet pressure is based on 7/32" stem travel. If the stem is depressed further, the outlet pressure will increase.
Operating Pressure 10 to 100 psig Operating Temperature Range 32 to 230°F (0 to 110°C) Ports (Inlet / Outlet) Std. - #10-32 / #10-32 Product Line Brochure Mechanical Valves Relieving Option Relieving (Standard) Travel Arc 7/32" Electro Medical Hub can support stock checking, model guidance, accessory details, delivery options and quotation requests through WhatsApp
