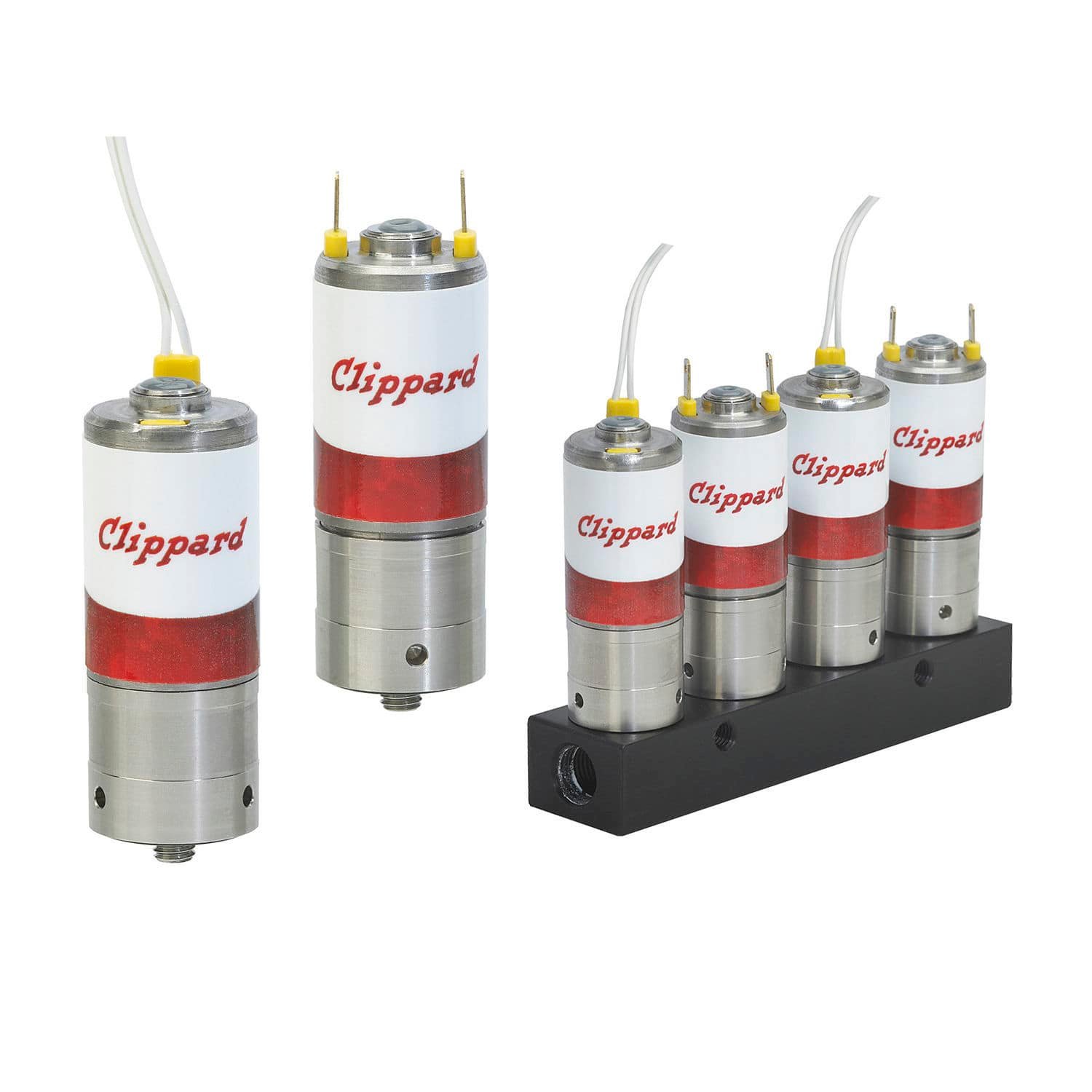

Gas valve DVP
The DVP Series proportional solenoid valves are precision-built 2-way control valves, utilizing a unique, patented valving principle. They offer an extremely high cycle life, fast response, linear flow gain, low hyste
Overview
The DVP Series proportional solenoid valves are precision-built 2-way control valves, utilizing a unique, patented valving principle. They offer an extremely high cycle life, fast response, linear flow gain, low hysteresis, low power consumption, and flows over 60 l/min. The valve provides air or gas flow control, and varies the output flow based on the current input to the solenoid.
Industry standard for leak-free operation Over 1,000,000,000 cycles Extremely low hysteresis Fast response time Large flows in a small, sleek design Low heat rise/low power Robust stainless steel "spider" flat armature spring CE, RoHS compliant Proudly Made in USA 2D File - File Accessories - Installation Socket Torque Tool 30220 Air Flow - 45.5 l/min Coil Resistance (72° F) - 52.6 ohms Cycle Life - Over 1,000,000,000 Cycles Data Sheet - Valve Data Sheet, Driver Data Sheet (optional) Filtration - 40 micron (recommended) Function - 2-Way Normally-Closed Proportional Input Current Range - 0 to 0.190 amps Manifolds - Manifolds Material, Body - Stainless Steel Material, Seals - FKM (Std.) Material, Seat - Stainless Steel Material, Wetted - 304 Stainless Steel, PPS FKM (Std.) Maximum Voltage Required - 13 VDC Medium - Air & Compatible Gases Mount - Manifold with #10-32 Male Stud Note - CE, RoHS & REACH Compliant Number of Ports - 2 Operating Temperature Range - 32 to 120°F (0 to 49°C) Port, Inlet - Manifold Stud Port, Outlet - Manifold Outlet Hole Product Line Brochure - Proportional Valves Unit - Imperial Voltage (72° F) - 10 VDC Wattage - 1.9 watts @ 72°F (22°C), 2.5 watts max Weight (lbs.) - 0.1500
