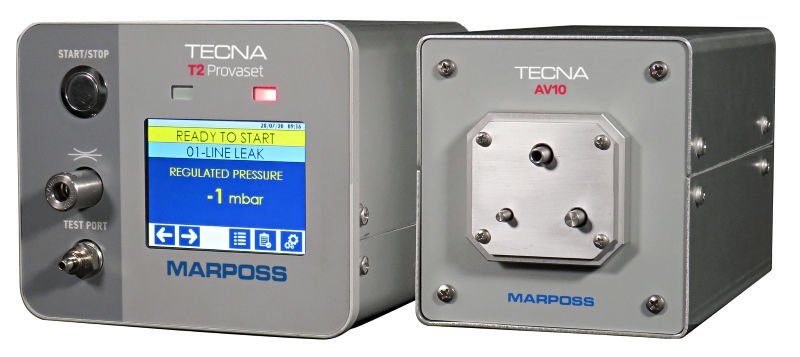

Compact leak tester TECNA T2
compact equipment for leak tests by absolute pressure decay. Its strengths are the compact size and the high performances that make this product extremely reliable and versatile. The optimized dimensions and unpainted
Overview
compact equipment for leak tests by absolute pressure decay. Its strengths are the compact size and the high performances that make this product extremely reliable and versatile. The optimized dimensions and unpainted anodized aluminum case make it suitable for use in controlled environments such as clean rooms and laboratories.
T2 is a compact, versatile and extremely reliable instrument that applies the latest electronic and pneumatic technologies to offer the best performances. Provaset T2 is designed for manual use on bench in limited areas, especially in medical segment and in cleanrooms, but it can be integrated on automatic systems managed by PLC too. PERFORMANCE Provaset T2 is available with 2 bar or 6 bar full scale models.
A Staubli connector is also available to connect a Leak Master to the instrument. The test pressure can be regulated with a manual pressure reducer and the pressure of the regulation is shown on the display. CONNECTIVITY Provaset T2 has several communication interfaces to communicate: digital I/O interface for PLC connection, RS232/RS485, Ethernet interface, USB.
Test recording is available via USB, Ethernet. EP Option for obstrucion test in continuous The equipment works into a continuos mode, checking whether each small tube under test is free of occlusions. The test starts immediately and automatically after the tube is easily inserted by the operator into the test port.
The operator won’t have to press any button to start the measurement. Each tube is tested independently, T2- EP gives the result on the screen up to the tube is finally removed by the operator
