TEMPERATURE DATA LOGGER RC-5+ ELITECH USA
Temperature Data Logger Elitech RC-5+ USB temperature data logger Elitech RC-5+ features a plug-and-play USB port interface and allows for faster access to data collec
Pre Order
SKU: IMP-8967ECED
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- Certificate
- Nist CE Calibration
- ROHS Transportation User Manual

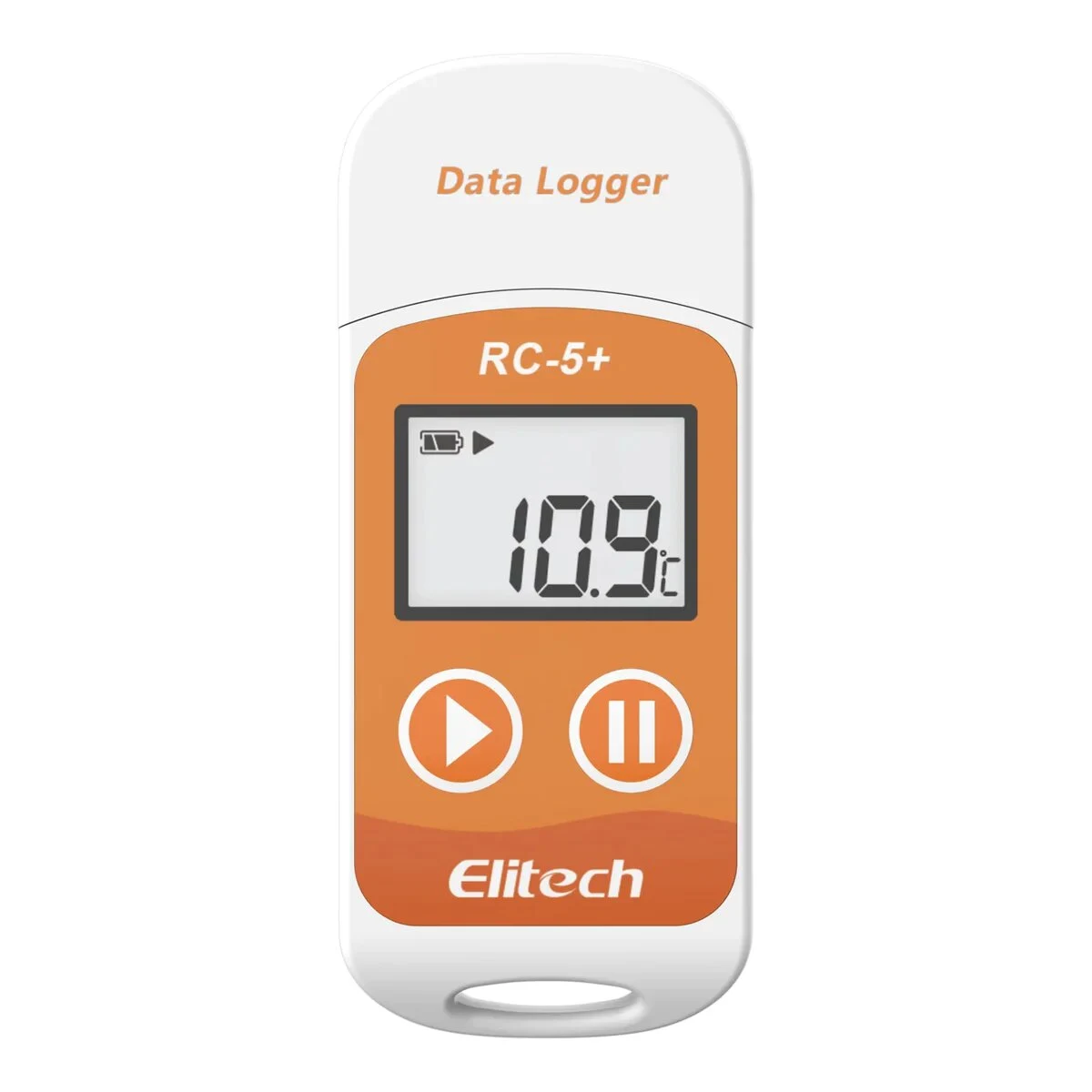

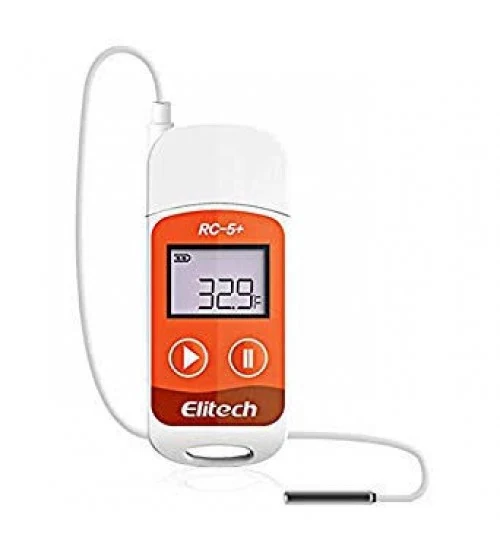

- RC-5+ Key Feature： Multi-use temperature data logger with wide measuring range (-22℉~158℉) and high accuracy (±0.9℉). Upgraded version of RC-5 with new functions of Auto PDF report (encryptable via PC or Android phones); Restart logger by button pressing; double battery life up to 12 months; external temperature sensor available for purchase. Built-in USB port, no cable, no reader, even no software required to download data. Lower power consumption and battery replaceable; records up to 32,000 points. More features as IP 67 waterproof protection, 5 alarm ranges, ℃/℉ options, Excel/PDF report formats, free software for Windows & macOS and etc. Plug into a computer or Android phone (requires OTG converter), read PDF report easily. Restart by long-pressing the left button.
- Sensor
- Internal NTC thermal resistor, no external sensor supported
- Temperature measuring range
- -30°C~+70°C/-22℉~158℉;
- Resolution
- 0.1°
- C Accuracy
- ±0.5 °C(-20°C~+40°C); others, ±1°
- C Temperature unit
- °C or °
- USB Power supply
- CR2032 replaceable battery CE certificate Nist certificate
- IP67 waterproof grade Dimensions
- 80mmx25mmx12mm(
- LxWxH) Shelf Life/Battery
- 1 year;
- Log Interval
- 10S~24
- H Temperature unit
- °C or °F optional;
- Record capacity
- 32000 points(
- MAX) Multiple-use
- data can be removed and start a new round by our software Data could be queried, saved, printed and exported in Excel/PDF format.
- Package Included
- 1 x Elitech RC-5+ Data Logger; 1 x CR2032 Battery; 1 x User Manual Plus Compared to Elitech RC-5 As the upgraded product of RC-5, RC-5+ has many improvements, where the major upgrades are:
- Auto PDF Report
- the new-added function allows data logger to generate PDF report automatically.
- Password Protection
- optional password protection will keep your data’s security.
- Double the Battery Life
- RC-5+ is with a battery life up to 12 months (15℃~23℃/45%RH~75%RH), which doubles RC-5' battery life. Free Elitechlog Software for Windows&macOS Firstly, please download and install the software instructed on the user manual or visit

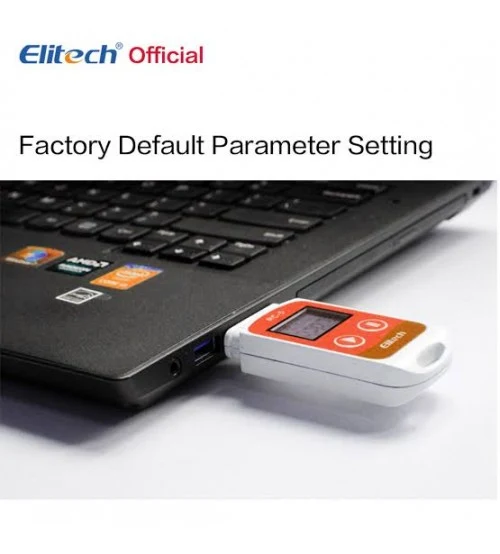

- Log Clock
- Not configurable. But the time will sync with that on the computer after our user clicks the Save Parameter button under the Parameter tab.
- S/N
- Not configurable.
- Trip Description
- Configurable. The info entered here will be shown on the report, it can be used to differentiate one logger from another.
- Log interval
- Configurable. Means how often our user wants the logger to perform a reading, it can be 10S, 1minute or 1day.
- Start Delay(H)
- Configurable. Means after you press the button on the logger, how long it would wait to officially start logging.
- Press button
- Configurable. Means after we press the triangle button for 4 seconds on the logger to start logging. We can still press this very button to restart the logger.
- Temperature Unit
- Configurable.Celsius or Fahrenheit.
- High/low limit
- Configurable. The upper and lower alarming point you want to set
