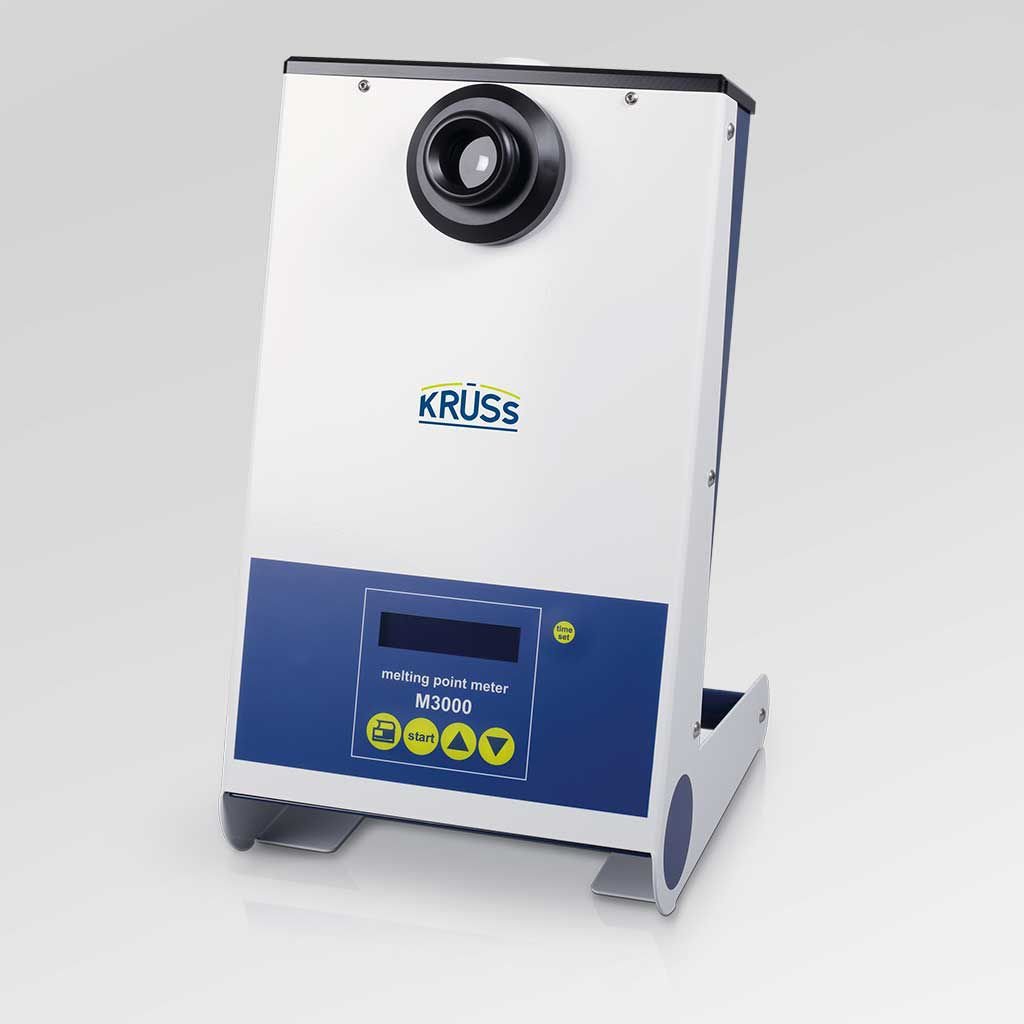

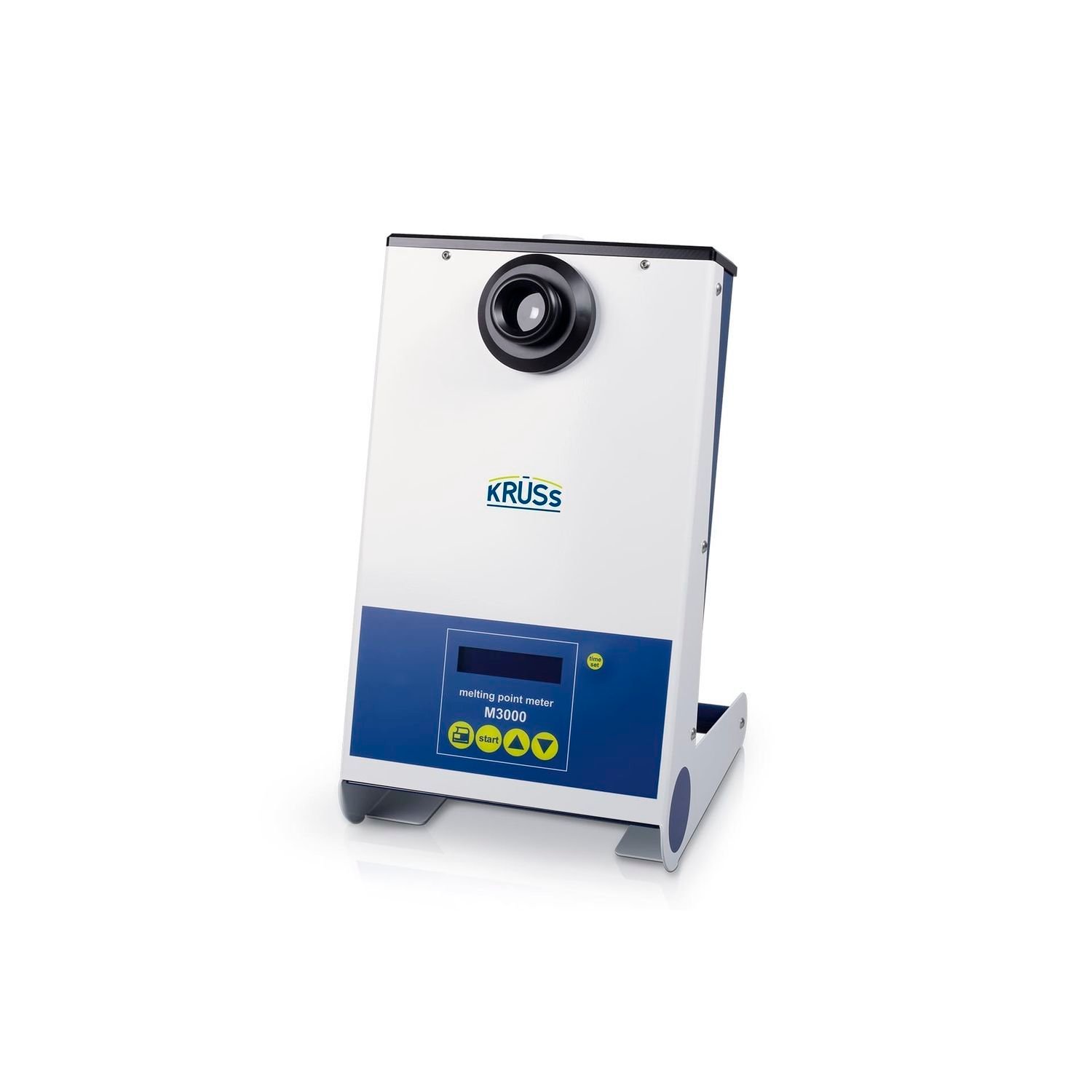

Semi-automatic melting point instrument M3000
With the M3000 model, powdered substances with a melting point of up to 360 °C can be analysed quickly and easily. Due to the triple capillary intake, it is possible to analyse up to three samples in a single measurem
Overview
With the M3000 model, powdered substances with a melting point of up to 360 °C can be analysed quickly and easily. Due to the triple capillary intake, it is possible to analyse up to three samples in a single measurement cycle. Due to the high pre-heating rate and built-in fan cooling, fast measurement is possible in any temperature range.
Even unknown substances can be conveniently analysed thanks to various adjustable heating rates. All important measurement data can be read immediately and clearly on the display.
Basic functions Semi-automatic measurement 10x observation optic 3 capillary intakes LC Display in German or English Digital visualization of all important data Monitoring of the illuminated sample via lens Automatic fast cooling through integrated fan Data can be exported to CBM910 printer via RS-232 interface Easy to clean membrane keypad Includes protective cover and 100 capillaries Technical data Specification
Measurement Range
30-360 °C Measurement accuracy - ±0.3 °C (30-200 °C) ±0.5 °C (200-360 °C) Resolution - 0,1 °C Preheating rate - up 200 °C approx.
4.0 min up 300 °C approx. 8.0 min Heating rate - 1 °C min -1 / 2 °C min -1 / 3 °C min -1 / 4 °C min -1 / 5 °C min -1 Observation optics - 10x Display - LCD No of capillary intakes - 3 Capillary Ø - 1.4 mm Interfaces - RS-232 IP code - IP20 Power supply - 90-264 V Dimensions (W x H x D) - 210 mm x 360 mm x 230 mm Weight - 4.3 kg
