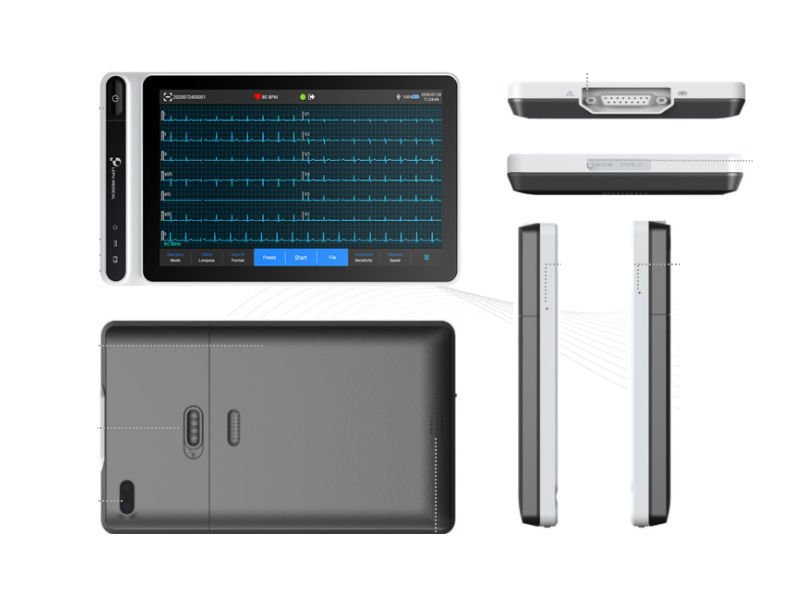

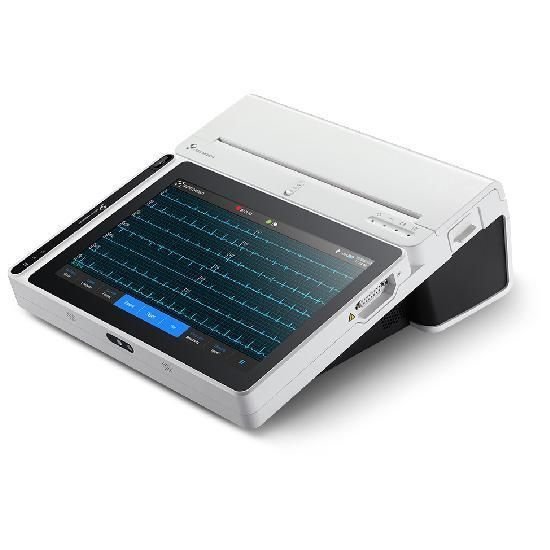

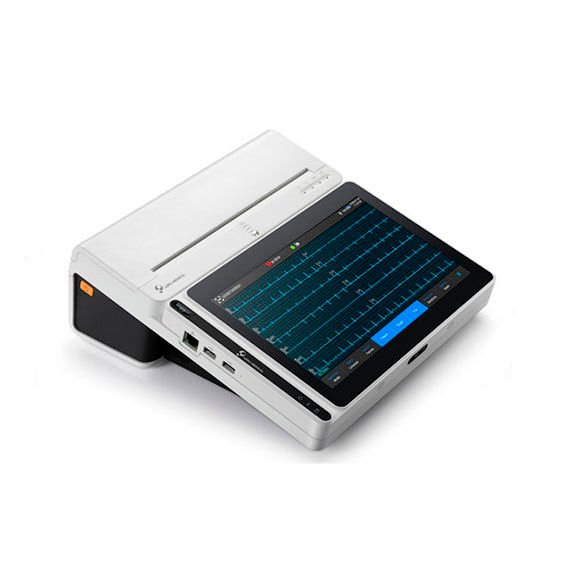

Resting electrocardiograph NeoECG T180
Product overview NeoECG is a tablet resting electrocardiograph available in S120 (7" ) and T180 (10.1" with optional printing dock). Both models run Android on a high-resolution capacitive color touchscreen. Lightweig
In Stock
SKU: EMH-64F605CC
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- Dual power
- external DC input and built-in rechargeable lithium battery (standby ≥ 10 hours).
- Eight sampling modes
- manual, pre-sampling, real-time, periodic, trigger, R‑R, 12‑lead extend and pharma.Patient data entry via virtual alphanumeric keyboard and barcode scanner support.Freeze function to hold ECG waveform on screen.
- Large internal storage
- at least 10,000 conventional ECG records.
- Multiple export formats
- CarewellECG, PDF, BMP, HL7, DICOM, SCP. Intelligent diagnostics Integrated automatic analysis based on the Glasgow algorithm and CWECG‑SLA provides measured values and diagnostic conclusions. AI validation achieved average accuracy of 95.2% on independent test data; automatic resting ECG analysis completes in approximately 1 second, reducing clinical interpretation time. External communication and connectivity USB support for external storage, external printers, barcode scanners and external keyboards.
- Wireless
- Wi‑Fi and 4G supported on both models; T180 additionally supports LAN.Data transmission to PC terminals, third‑party systems and ECG workstations. Device performance High‑performance acquisition parameters with an ultra‑wide frequency response suitable for neonatal and pediatric examinations and ensuring measurement stability and accuracy.
Technical Specifications
- Models

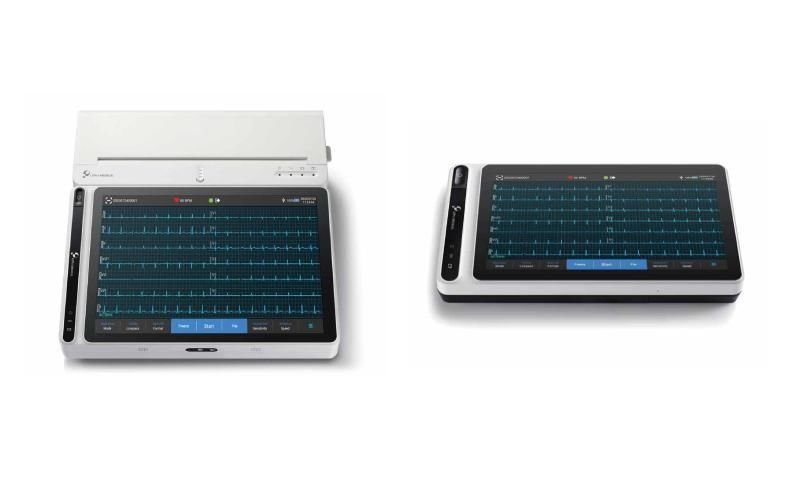

- NeoECG S120 (7") and NeoECG T180 (10.1", optional printing dock).
- Operating system
- Android.
- Display
- High‑resolution capacitive touch screen (7" / 10.1").
- Power
- External DC input and built‑in rechargeable lithium battery; standby ≥ 10 hours.
- Storage
- ≥ 10,000 conventional ECG records.
- Sampling modes
- manual, pre‑sampling, real‑time, periodic, trigger, R‑R, 12‑lead extend, pharma.
- Patient data entry
- virtual alphanumeric keyboard and barcode scanning.
- Waveform
- Freeze on screen.
- File outputs
- CarewellECG, PDF, BMP, HL7, DICOM, SCP.
- Analysis
- Glasgow ECG analysis and CWECG‑SLA algorithm for automatic measurement and diagnostic output.
- Connectivity
- USB peripherals; Wi‑Fi, 4G (both models); LAN (T180).
- Applications
- Home care, clinics, medical institutions and hospitals, including pediatric use
