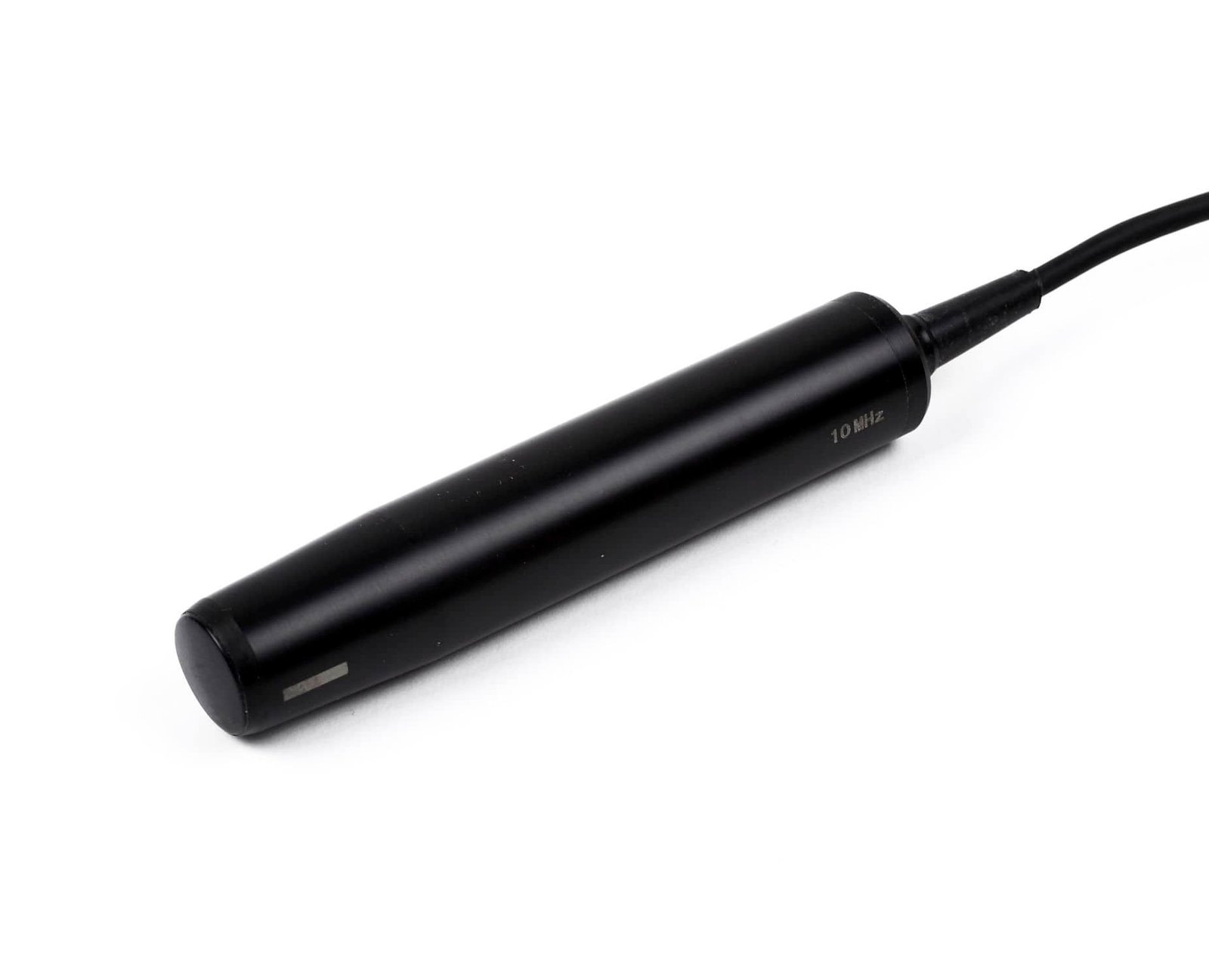

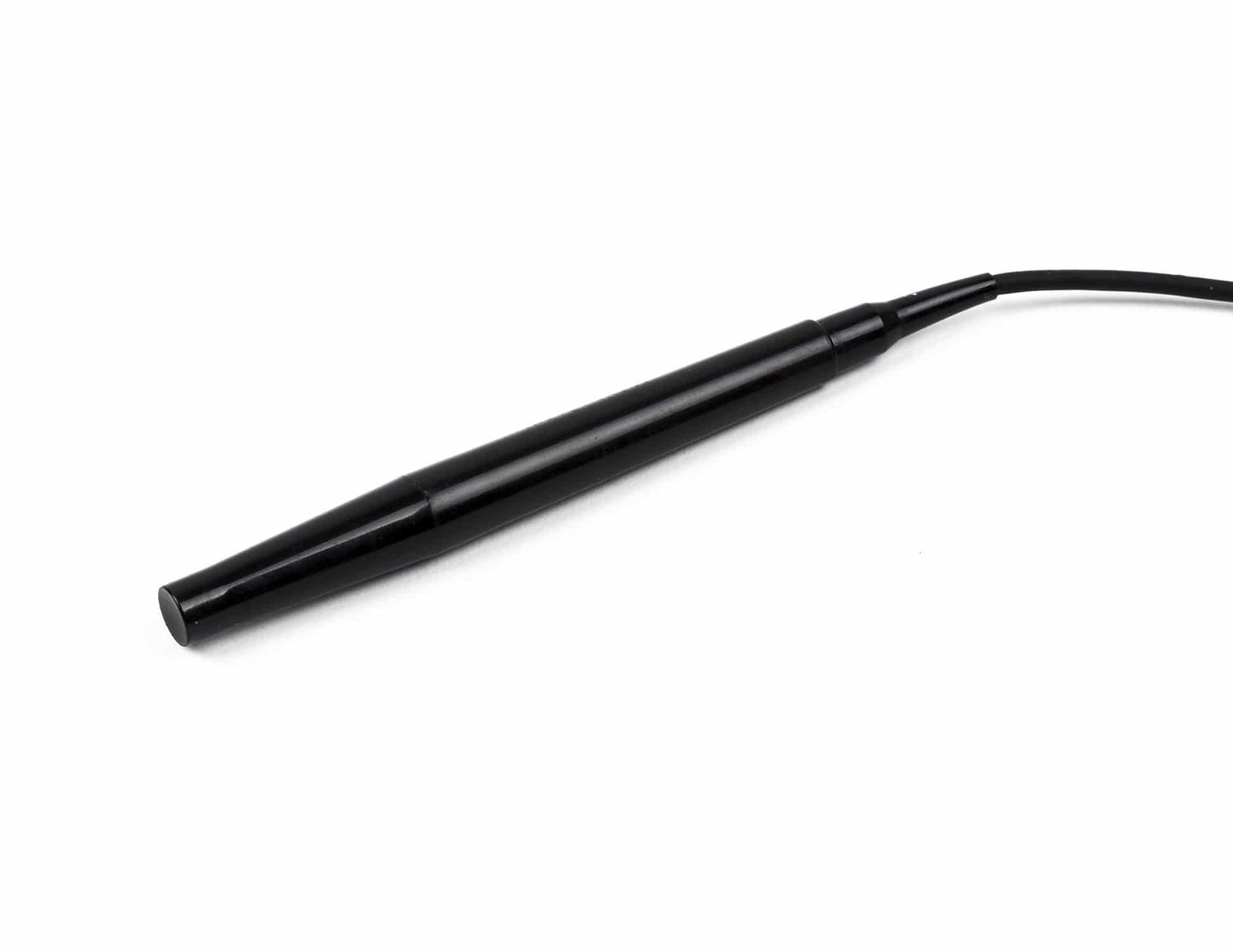

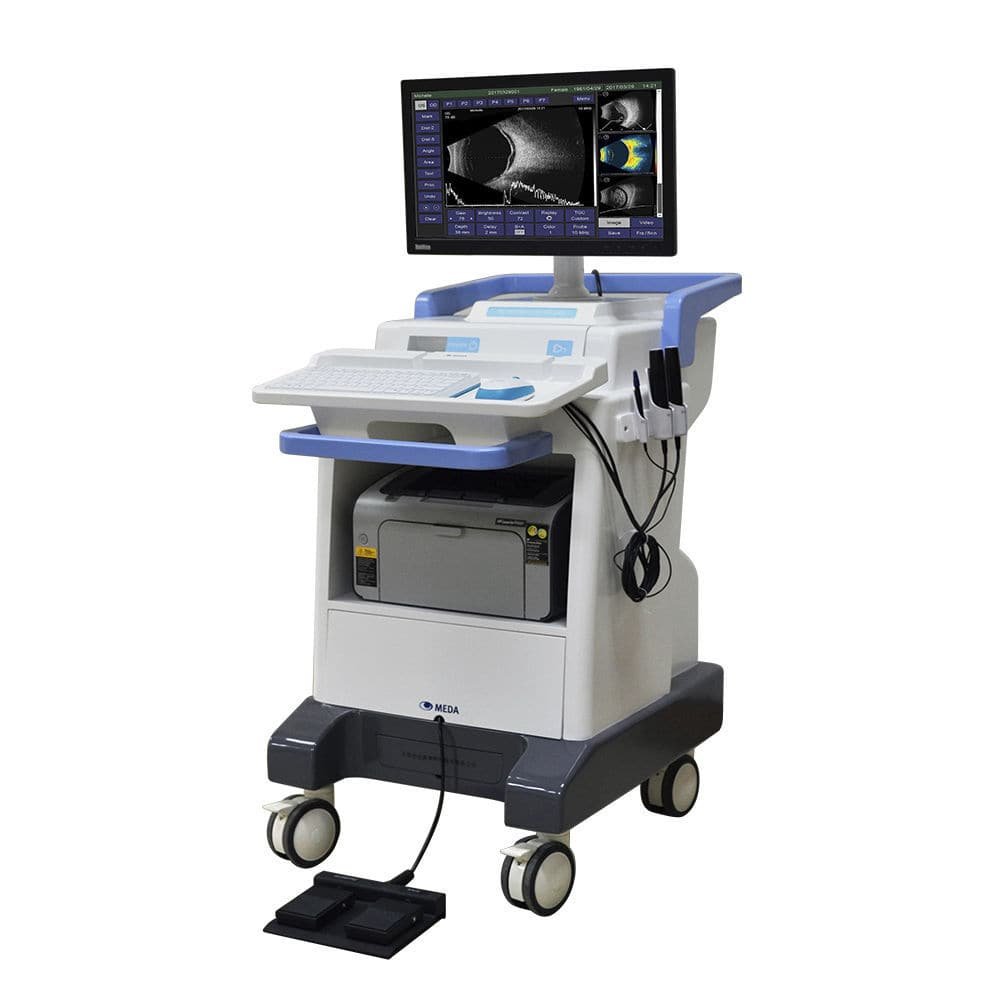

On-platform ultrasound system MD-2400S
B-Scan Scanning Angle: 53° Dynamic Loop: 10s/100 images, loop or frame-by-frame playback Image Saving: 100 images Gray Scale: 256 Levels Gain: 1-105dB adjustable TGC: -20dB to 20dB with dynamic range, manual sectional
In Stock
SKU: EMH-37B353E4
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- B-Scan Scanning Angle
- 53°
- Dynamic Loop
- 10s/100 images, loop or frame-by-frame playback
- Image Saving
- 100 images
- Gray Scale
- 256
- Levels Gain
- 1-105d
- B adjustable TGC
- -20dB to 20dB with dynamic range, manual sectional adjustment (6-section adjustable)
- Post-processing
- Frame-Averaging; Pseudo-Color Codes; Gamma Correction; Text Annotation & Image Magnification
- Axial Length (AL)
- 15mm-40mm;
- AL Biometric Measuring Accuracy
- No more than ±0.05mm;
- Total Gain
- 98dB, user’s gain adjustability: 1~60dB;
- Measuring Mode
- 5 groups (Normal, Aphakic, Special, Cataract and Manual Measurement);
- Measuring Method
- Immersion/Contact;
- IOL calculation
- SRK-T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q and HAIGIS; Support IOL calculation after refractive surgery, two groups of formulas can be calculated contrastively and displayed simultaneously. Automatic measurement and 10 groups averaging and display standard deviation. Up to 8 groups of IOL constants can be stored Electro Medical Hub can support stock checking, model guidance, accessory details, delivery options and quotation requests through WhatsApp
