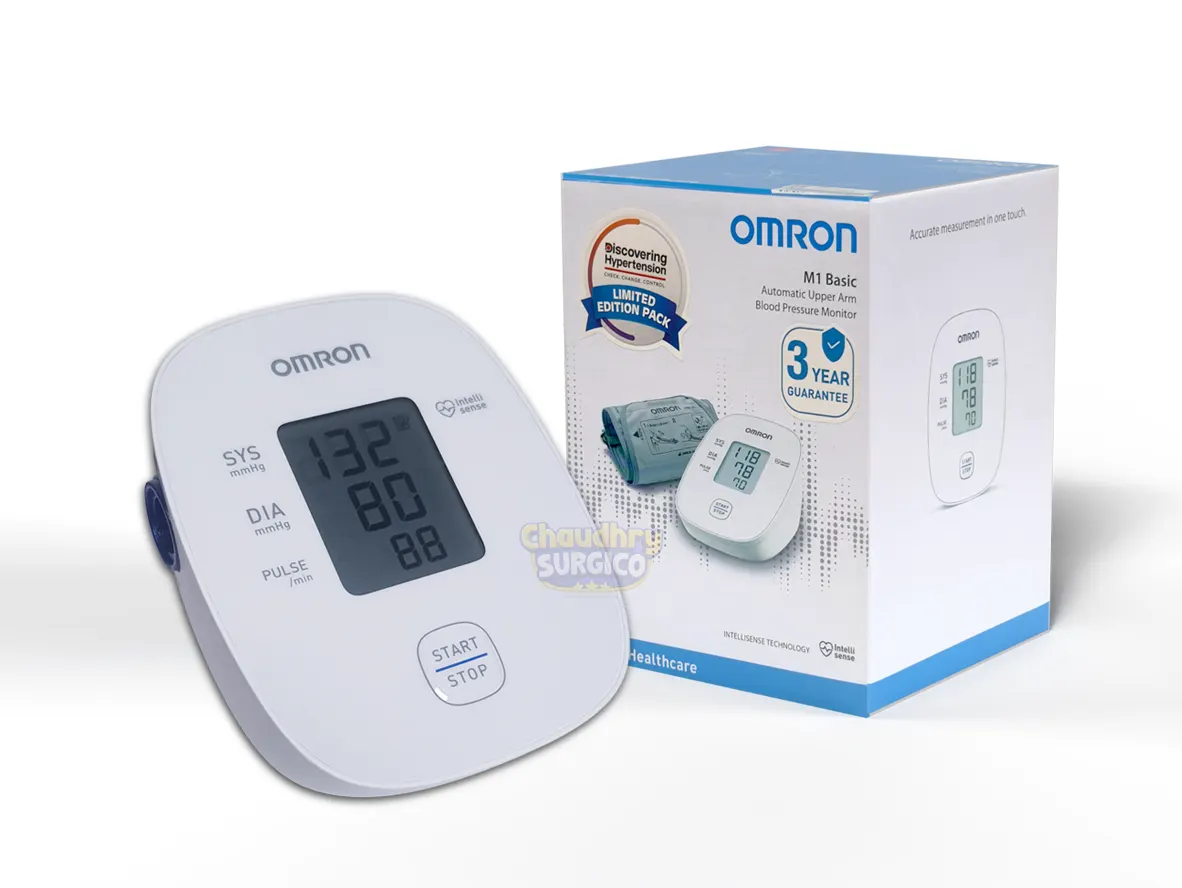

OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic

Overview

Simplified Design

Easy one-touch operation. Intellisense

Technology Hypertension Indicator

Alerts for high readings. Irregular

Heartbeat and Movement Detection

Provides alerts.

Simple Storage and Cuff Design

Comfortable and convenient.

Reading Memory

Track your readings.

Accurate Measurement

Oscillometric method. 360 Model View of OMRON Digital BP M1 Basic Model HEM-7121J-AF Unboxing video of OMRON Digital BP M1 Basic SPECIFIC

Oscillometric method Cuff Pressure Range

0 to 299 mmHg Blood Pressure

Measurement Range

20 to 280 mmHg Pulse

Measurement Range

Pressure

±3 mm

Hg / Pulse

±5% of reading

Power Source

4 "AA" batteries or optional

Approximately 1000 measurements Cuff Size

Fits adult upper arms 9” to 13” inches (22-32 cm) circumference.

Storage Memory

14 readings

Monitor

approx. 250g /

Cuff

approx. 130g

Monitor

108mm (

W) x 83mm (H) x 140mm (L) / Cuff

145mm x 466mm TOP 5 MOST ASKED QUESTIONS What is the price of the OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic? the price of the OMRON Blood Pressure Monitor Digital Upper Arm M1 Basic is Rs. 9500. How many readings does it store? It shows last previous saved record. Does it detect irregular heartbeats? Yes, it does. What is the cuff size? Fits arms 9" to 13" inches (22-32cm) circumference. Can I use an AC adapter with it? Yes, an optional AC adapter is available. (not included in the package)

Error Messages and Troubleshooting

Display/Problem Possible Cause (inches) Solution E1 The [START/STOP] button was pressed while the arm cuff is not applied. arm cuff does not inflate. Air plug is not completely plugged into the monitor. The arm cuff is not applied correctly. Air is leaking from the arm cuff. appears or a measurement cannot be completed after the arm cuff inflates. Press the [START/STOP] button again to turn the monitor off. After inserting the air plug securely and applying the arm cuff correctly, press the [START/STOP] button. Insert the air plug securely. Apply the arm cuff correctly, then take another measurement. Refer to section 4 of instruction manual 2. Replace the arm cuff to the new one. Refer to section 9 of instruction manual 2. E2 You move or talk during a measurement and the arm cuff does not inflate sufficiently. Due to the systolic pressure is above 210 mmHg, a measurement cannot be taken. Remain still and do not talk during a measurement. If "E2" appears repeatedly, inflate the arm cuff manually until the systolic pressure is 30 to 40 mmHg above your previous readings. Refer to section 6 of instruction manual 2. E3 The arm cuff is inflated exceeding the maximum allowable pressure. You move or talk during a measurement. Vibrations disrupt a measurement. Do not touch the arm cuff and/or bend the air tube while taking a measurement. If inflating the arm cuff manually, refer to section 6 of instruction manual 2. E4 The pulse rate is not detected correctly. Remain still and do not talk during a measurement. E5 does not flash during a measurement. Apply the arm cuff correctly, then take another measurement. Refer to section 4 of instruction manual 2. Remain still and sit correctly during a measurement. Err The monitor has malfunctioned. Press the [START/STOP] button again. If "Er" still appears, contact your OMRON retail outlet or distributor. Low Battery /Indicator the monitor is turned off unexpectedly during a measurement Replacing all 4 batteries with new ones is recommended. Refer to section 3 of instruction manual 2. Top Best Digital BP Apparatus Price in Pakistan Rechargeable Digital Blood Pressure Machine Glaximed Upper Arm Best Digital Blood Pressure Machine Certeza BM-450 Believia Digital BP 40A Best Digital Blood Pressure Machine in Pakistan Blood Pressure Monitor Digital Certeza BM 405 upper arm BLOOD PRESSURE MONITOR DIGITAL CERTEZA 407 UPPER ARM
