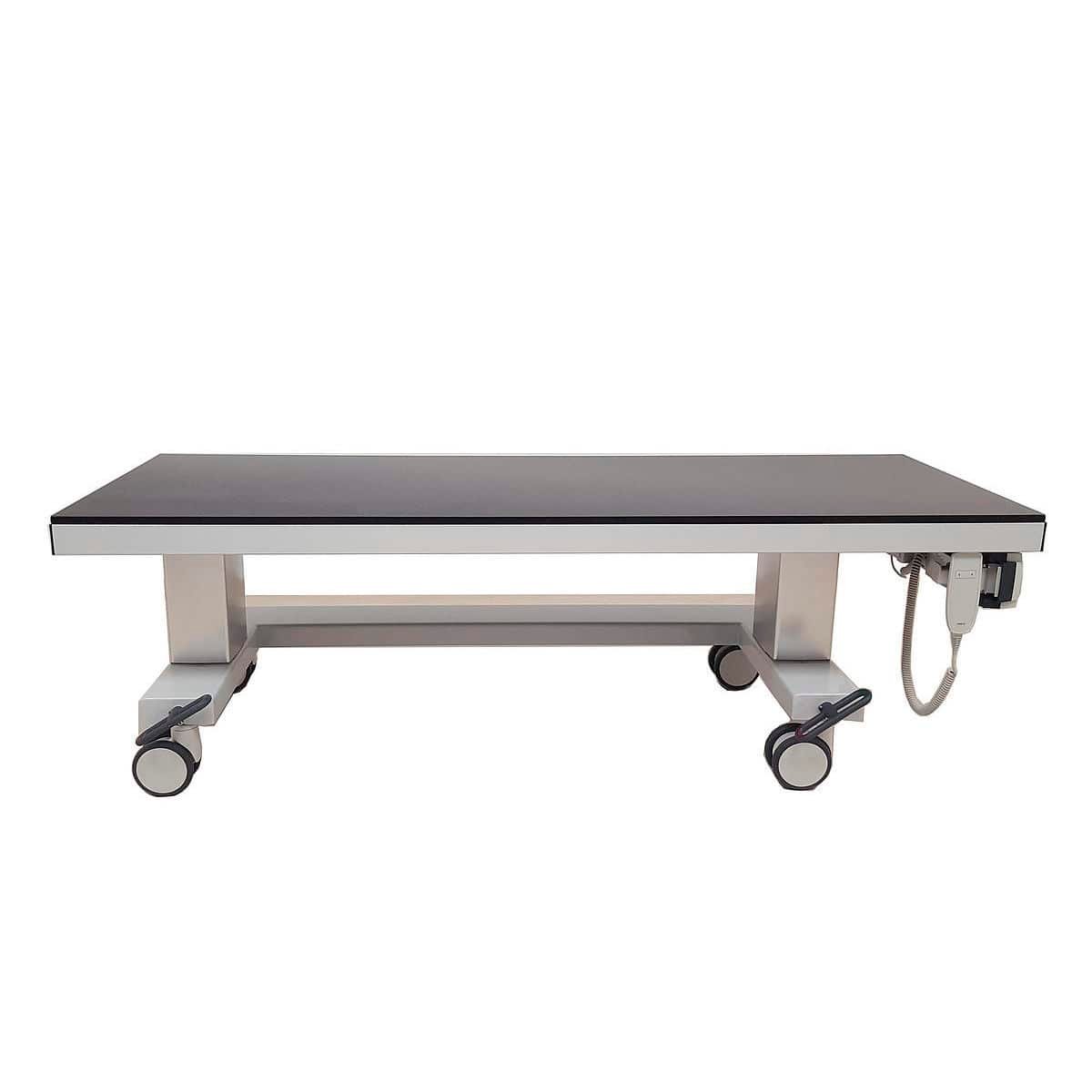

Mobile X-ray table AGA-AKKU-POWER-LIFT
Product overview The AGA-AKKU-POWER-LIFT are X-ray tables with battery-powered height adjustment, specially developed for mobile X-ray use. Height adjustment is electric and controlled via a hand switch with two butto
Overview

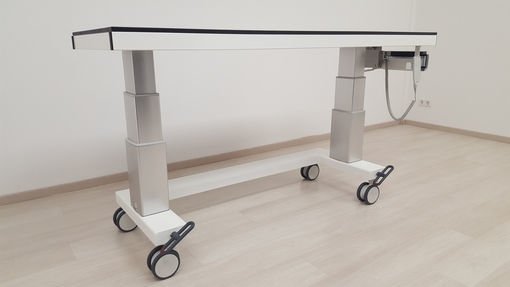

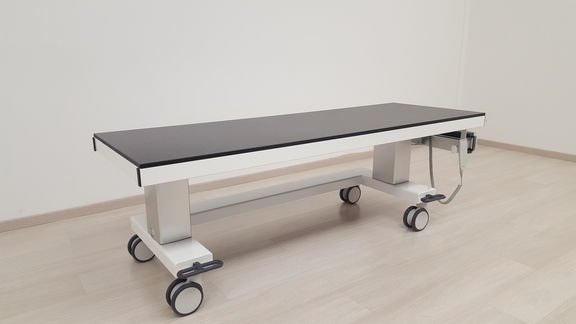

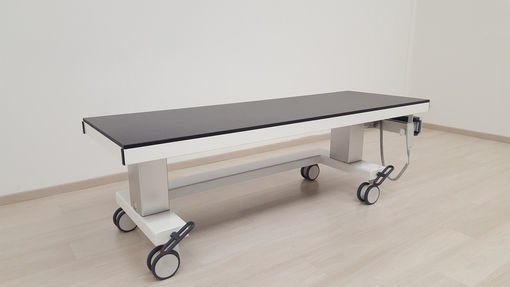

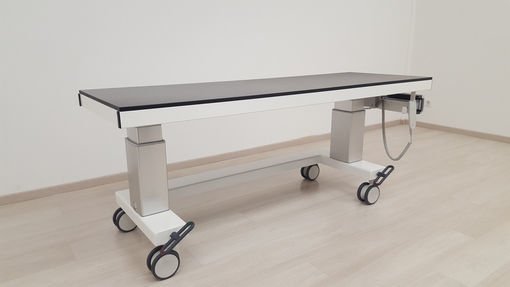

Product overview The AGA-AKKU-POWER-LIFT are X-ray tables with battery-powered height adjustment, specially developed for mobile X-ray use. Height adjustment is electric and controlled via a hand switch with two buttons. The tables are equipped with battery-controlled drives for height adjustment and feature radiolucent support plates.
Versions X-ray table, Article No.: RGL-1065/AC, 650 mm wide - one-piece, continuous tabletop.X-ray table, Article No.: RGL-1080/AC, 800 mm wide - one-piece, continuous tabletop.X-ray table, Article No.: RGL-1065/KAC, 650 mm wide - two-piece tabletop, headrest adjustment by grid (13 locking steps).X-ray table, Article No.: RGL-1080/KAC, 800 mm wide - two-piece tabletop, headrest adjustment by grid (13 locking steps).
Features Black, radiolucent support plates (tabletop) made of regenerated PE-1000; thickness: 15 mm for 650 mm tables, 25 mm for 800 mm tables.Base frame supplied with levelling feet as standard for high stability.Height adjustment range: 460 – 860 mm, controlled via hand switch with two buttons; system includes key lock and emergency stop.No metal parts in the area between the lifting columns (approx.
1,200 x 600 mm L x W for 650 mm width; approx.
1,200 x 750 mm L x W for 800 mm width).For the 2-piece tabletop versions, headrest and transition areas are only partially radiolucent due to hinges and the grid.Headrest adjustable in 13 locking steps up to +30°; position can be left or right (right side delivered if no side specified).Two telescopic lifting columns made of anodized light metal, battery driven and controlled by a hand switch with two buttons.
Connection values per battery unit: 230 V, 50/60 Hz, 4.0 A, 160 W, IPX6, speed approx. 16 mm/s, 2 x 2,000 N.
Standard configuration Hand switch with spiral cable and two buttons (up/down).Battery holder and hand switch holder on the right hand side.External battery charger.Base frame with levelling feet.
Accessories & additional options (examples) Set of castors Ø 75 mm (LR-75) or Ø 125 mm (LR-125) — four swivel castors, two lockable; selectable for different table heights.Central locking castor system, double swivel castors Ø 125 mm (LR/Z-125) with diagonally arranged foot pedals at head and foot ends (for table heights approx.

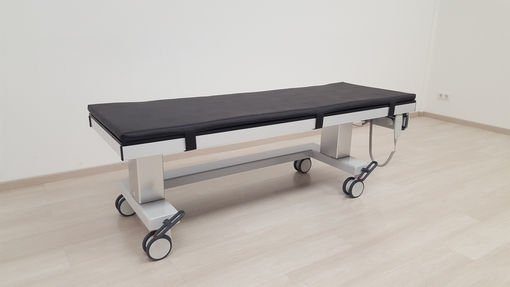

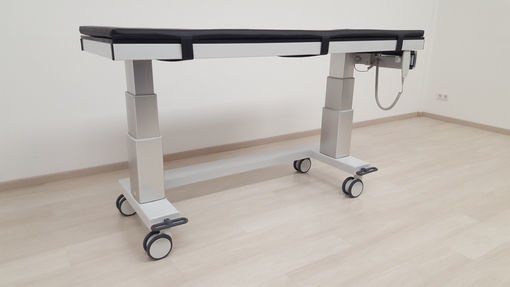

620 – 1,020 mm).Standard rails (pair) in various lengths for mounting accessories or protection curtains (made of CrNi steel).Upholstered pads (PAL-190-65 for 650 mm tables, PAL-190-80 for 800 mm tables), thickness 40 mm, fixed under the tabletop with straps and Velcro; available in multiple upholstery colours.
Technical data AGA-AKKU-POWER-LIFT Article number | RGL-1065/AC | RGL-1080/AC Frame | Lacquered Length | 1,900 mm Width | 650 mm | 800 mm Height adjustment | 460 - 860 mm (battery drives) Tabletop, 1 section | ✓ Thickness of support plate | 15 mm | 25 mm Radiolucent area | 1,200 x 600 mm | 1,200 x 750 mm Tabletop, 2 sections (500 / 1,400 mm) | RGL-1065/KAC | RGL-1080/KAC Load capacity | 150 kg Characteristics /
Technical Specifications
- Brand
- AGA Sanitätsartikel.
- Product name / model
- AGA-AKKU-POWER-LIFT.
- Available article numbers
- RGL-1065/AC, RGL-1080/AC, RGL-1065/KAC, RGL-1080/KAC.
- Table length
- 1,900 mm.
- Table widths
- 650 mm or 800 mm.
- Height adjustment range
- 460 – 860 mm (battery-driven).
- Support plate material
- regenerated PE-1000; thickness 15 mm (650 mm table) or 25 mm (800 mm table).Radiolucent area approx.: 1,200 x 600 mm (650 mm table) or 1,200 x 750 mm (800 mm table).
- Tabletop options
- one-piece continuous tabletop or two-piece tabletop (500 / 1,400 mm) with headrest grid (13 locking steps).
- Headrest adjustment
- up to +30°, selectable left or right position.
- Load capacity
- 150 kg.
- Lifting columns
- two telescopic anodized light-metal columns; battery operated; drive parameters: 230 V, 50/60 Hz, 4.0 A, 160 W, IPX6, approx. 16 mm/s, 2 x 2,000 N.
- Standard equipment
- hand switch with spiral cable, battery holder, external battery charger, levelling feet.
- Accessories
- castor sets (LR-75, LR-125), central locking castor system (LR/Z-125), standard rails (OPS-40/A to OPS-170/A), upholstered pads (PAL-190-65, PAL-190-80)
