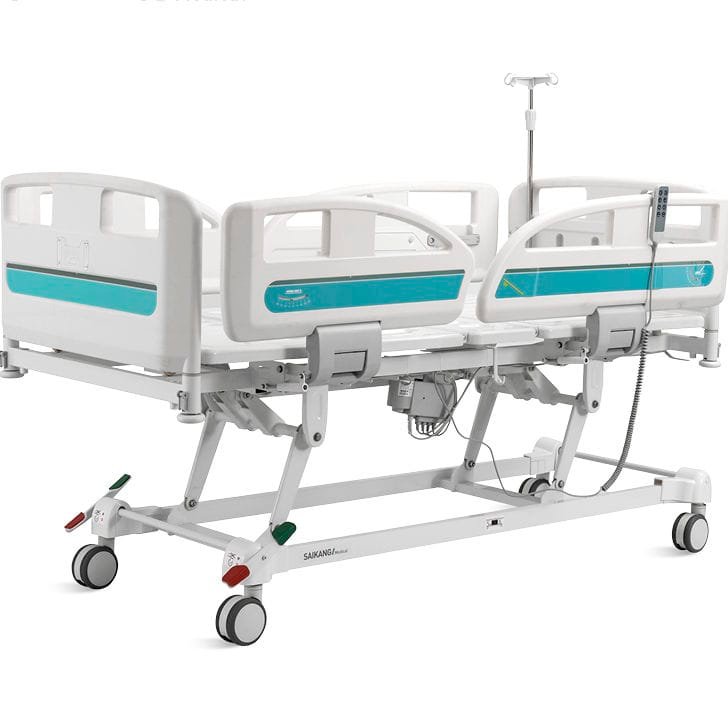

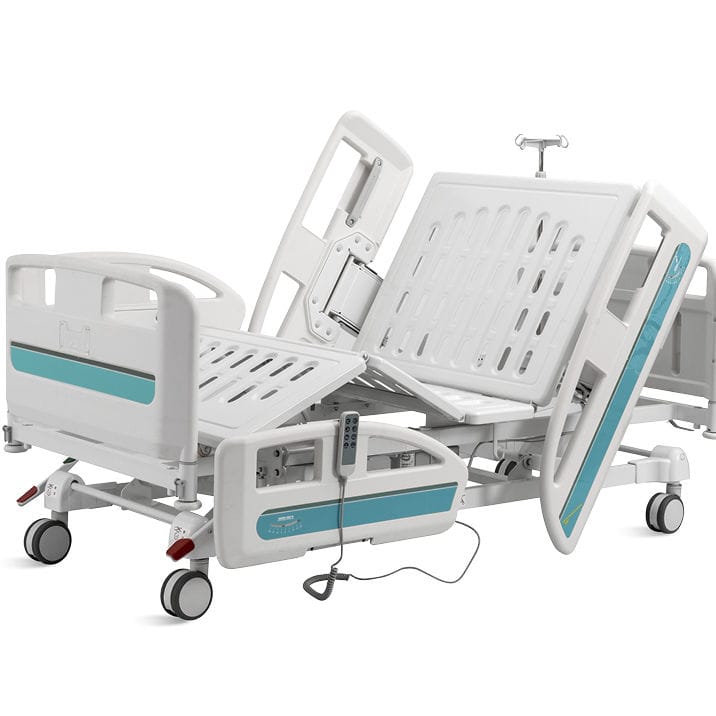

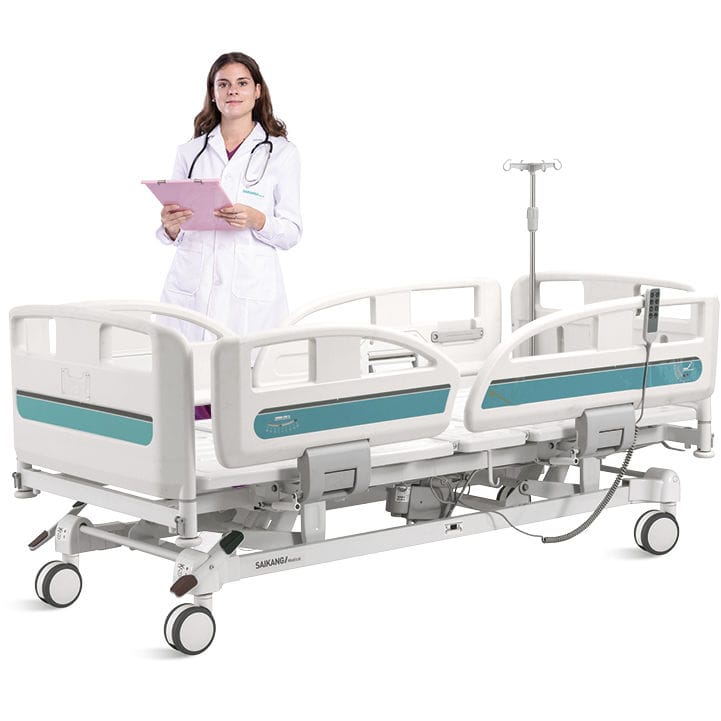

Medical bed Y6t8y
Follow IEC60601 Safty Standard With UL/ROHS/EN approval. Noise under 50dB, with lifetime 20,000times movement. Three position braking systerm, transporting can maintain a straight line. Motor protection： The elevators
Overview
Follow IEC60601 Safty Standard With UL/ROHS/EN approval. Noise under 50dB, with lifetime 20,000times movement. Three position braking systerm, transporting can maintain a straight line.
Motor protection： The elevators are equipped with electric protection against overload, therefore the bed will automatically stop when an elevator is overloaded. Once the overload is removed, the bed can continue to work without interference. Handheld controller for patients and nurses, ergonomic design.
Built-in LED torch, backlit keyboard design for night use.This panel is an optional accessory.
Technical Parameters: - - External Size (LxWxH) - 2130*1060*475-785mm±10mm - Mattress Platform - L1925*W900±10mm - Safe Working Load - 250kg - Back rest - 75°±10° - Leg rest - 35°±10° - Angle indicator - 90° - Position line - 30° - Mattress size - L1925*880*10mm - Bumper wheel - 4xΦ70mm - Voltage and frequency - 100-240V - 50-60HZ - Plug as required(hospital grade) - - Technical Configuration: - - Linear motor - - 3 pcs 5" double side cators, central locking system - 4 pcs ABS oasis side rail extra height - - 1 set ABS oasis bed ends with safe lock - - 1 set Stamping forming bed platform - - 1 pc Plastic socket inside PP guardrail for phone or glasses - 2 pcs Φ70mm wall bumper wheel - - 4 pcs IV Pole - - 1 set IV Pole prevision - - 4 pcs Drainage hook - - 2 pcs Central locking pedal - - 2 pcs Hand controller - - 1 pc
