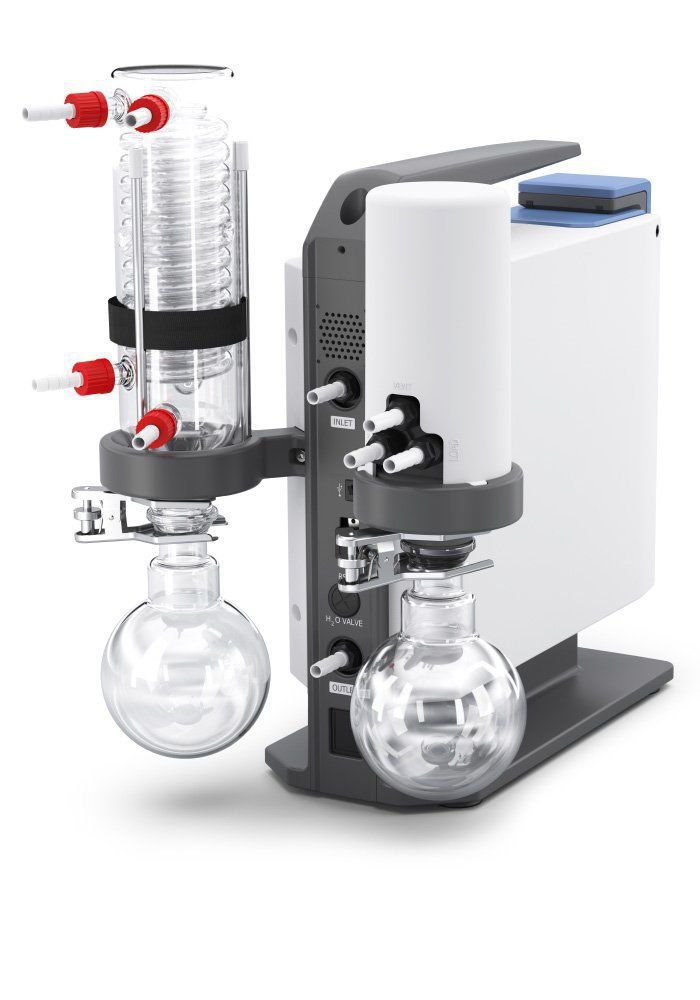

Laboratory vacuum pump IKA Vacstar control
Separation, filtration, removal: The VACSTAR dry 4-chamber membrane vacuum pump is powerful, resistant to chemicals and low-maintenance. VACSTAR control is the ideal system with its integrated vacuum controller and re
In Stock
SKU: EMH-5283EE82
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- Hz)
- 1.32 m³/h Pump rate max. (50/60
- Hz)
- 22 l/min
- Final pressure without gas ballast
- 2 mbar
- Suction levels
- 4
- Cylinder
- 4
- Connection diameter suction side
- 8 mm
- Connection diameter pressure side
- 8 mm
- Input pressure
- 2 - 1030 mbar
- Boiling point detection
- yes
- Solvent library
- yes
- Analog speed vacuum control
- yes
- Turning knob Speed range
- 285 - 1200 rpm
- TFT Pressure unit / scale
- mbar, hPa, mmHg,
- Torr Vacuum sensor
- yes
- Vacuum sensor type
- ceramic Al2O3 Pressure max. for pressure sensor: 1.2 bar
Measurement Range
- Control range
- 1 - 1030 mbar
- Resolution pressure
- 1 mbar
- Measurement uncertainty
- 1 mbar
- Venting valve
- yes
- Condensate trap
- yes
- Emission condenser
- yes
- Timer
- yes
