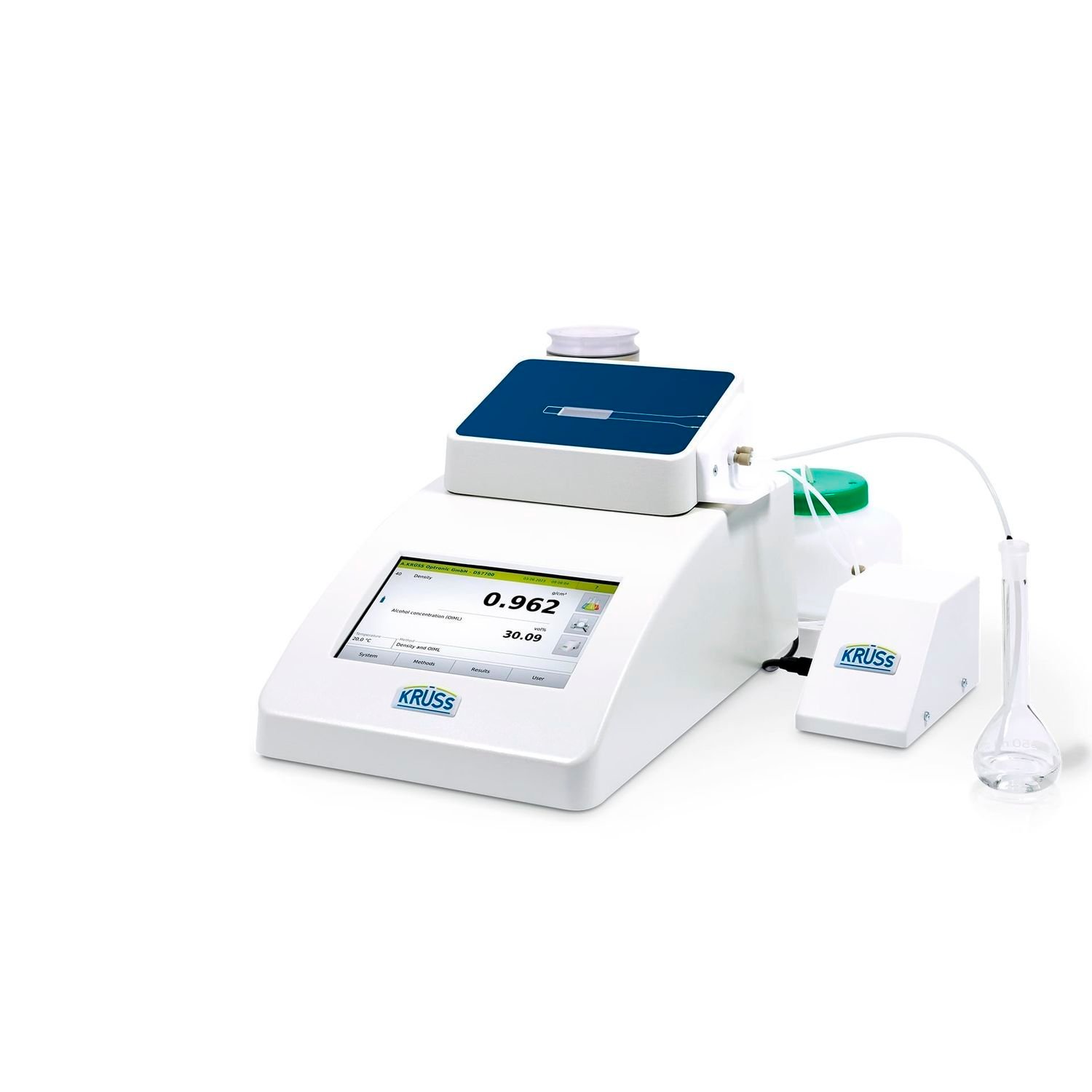

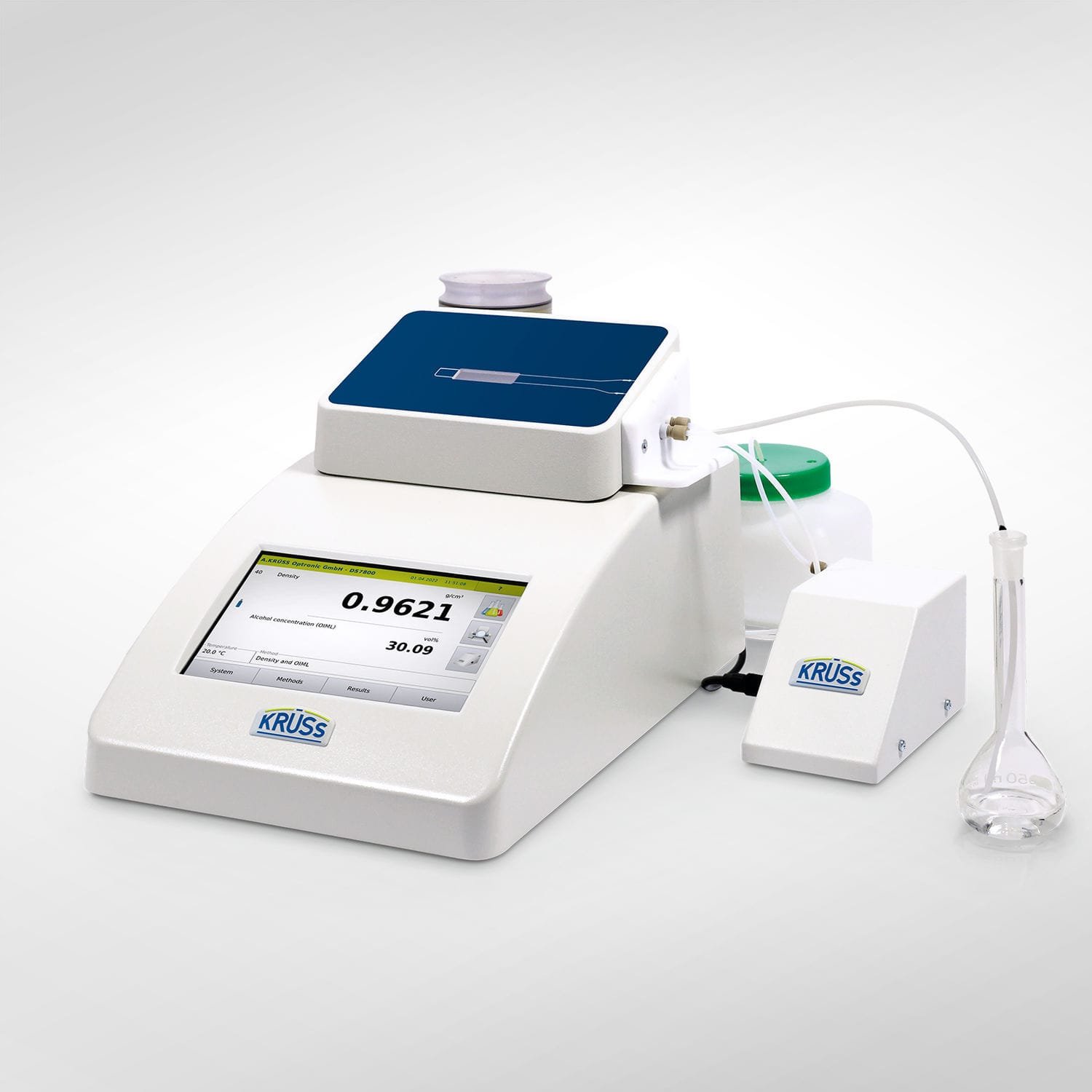

Laboratory density meter DS7700-SA
These digital density meters for semi-automatic sample supply work with the proven oscillating U-tube technology. For low to slightly viscous samples, sample supply and cleaning is semi-automatic with these models usi
Overview
These digital density meters for semi-automatic sample supply work with the proven oscillating U-tube technology. For low to slightly viscous samples, sample supply and cleaning is semi-automatic with these models using a peristaltic pump. This means higher efficiency and more safety if aggressive or harmful substances are to be analysed.
The minimum sample volume supply of the oscillating U-tube is less than 1 ml. The internal Peltier temperature control ensures a fast and stable sample temperature. Whether density, specific gravity, Brix, alcohol, sulfuric acid concentration or other user-configured scales, the possibilities of configuration are almost unlimited.
The devices are used in various areas of the pharmaceutical, chemical, petrochemical, food and beverage industries. They can be used to determine quality or purity and to measure concentration in binary mixtures.
Basic functions Suitable for semi-automatic and manual sample supply Drying unit and peristaltic pump with high chemical-resistant properties Direct connection to drying unit DS7060 with 3/2-way valve, enabling semi-automatic cleaning and drying without having to reconnect hoses Intuitive Operation via 7.0″ touch-screen display, 6 languages selectable Easy-to-understand, menu-guided adjustment Scales such as density, relative density, Brix, alcohol and sulphuric acid concentration are pre-installed; further scales can easily be set up Conformity with GMP/GLP, 21 CFR Part 11, pharmacopoeias (USP, BP, JP, Ph.
Eur.), FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST Technical data Specification
Measurement Range
0-3 g/cm³ Temperature control range - 10-40 °C
