Hemodynamic simulation pump PLPTXG003

Overview

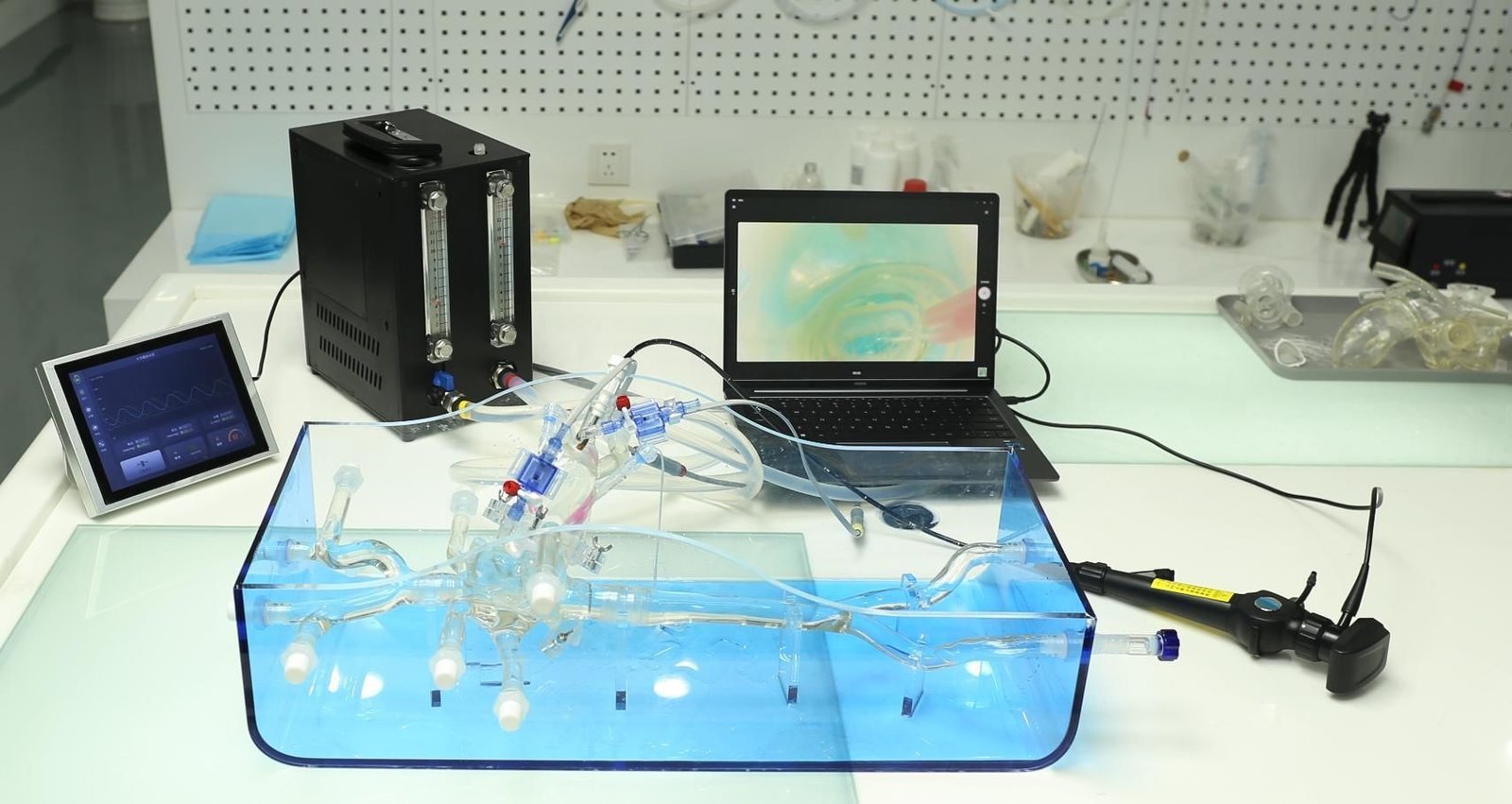

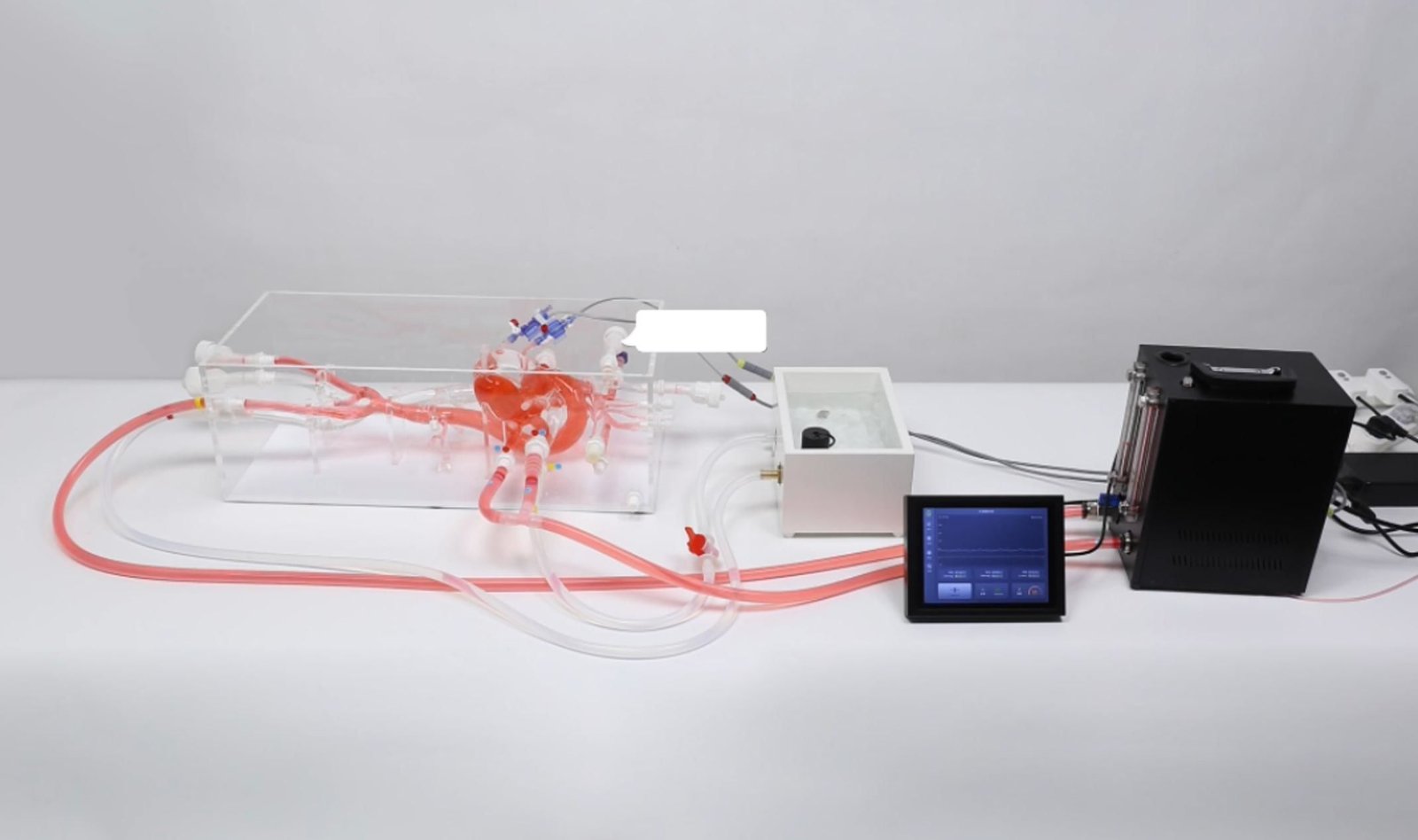

Overview The PLPTXG003 large-flow pulsation pump is a compact pulsatile flow source designed for human vascular simulation and medical training systems. It comprises a pulsation pump system, a control unit and a touchscreen output display. The device provides adjustable pulsation frequency, flow and pressure to reproduce physiologically relevant hemodynamic conditions for endovascular and full-body vascular simulators.

Software & Training Support The pump integrates with simulation platforms and offers a clear touchscreen interface for real-time status. Software features include quick setup of frequency and flow points, dual-channel sensor acquisition, differential pressure curve analysis and raw data export (TXT) for traceability and post-training analysis. These capabilities support instructor feedback and data-driven training workflows.

Representative product types and modules Bronchoscopy Training ModelEndobronchial Therapy Training ModelRespiratory Endoscope Training ModelEBUS-TBNA Training ModelPediatric Bronchoscope Training ModelTracheotomy Training Model / ModuleNeurovascular Operation Training Model (Type A / B / C)Coronary Artery Simulation Model (A / B / C)Lower Extremity Artery Simulation ModelFull-body Vascular Simulation Models / Modular whole-body vascular modelLaparoscopic Surgery Skill Training SimulatorHysteroscopy & Gynecology Training ModelsColonoscopy and Upper Gastrointestinal Training ModelsProstate Endoscopy / Prostate Ultrasound Training ModelsERCP and ESD Training ModelsECMO Training SystemPICC Training ModelUltrasound Cardiac Training ModelAI Bronchoscopy Virtual Simulator and IPSIM Virtual/Real Bronchoscopy SimulatorSilicone lesion modules (ordinary, electroresection gel, cryoablation gel)Vascular intervention supporting equipment and accessories Available related pumps (examples shown on the page) Large flow pulsation pumpPulsating pump - Type APulsating pump - Type CHigh flow DC pump Characteristics /

Technical Specifications

PLPTXG003Components

pulsation pump system, control system, output display (touchscreen), pressure sensor interface

Power supply

90–240 VAC, 50–60

HzPulsation frequency

20–180

Beat/minMaximum cardiac output

7 L/min @

Max (72 Beat/min)Pressure range

0–250 mmHg; pressure accuracy: ±2 mm

HgTemperature control accuracy

±0.5 °

CMaximum power

8000

WExternal dimensions

290 mm × 165 mm × 290 mm; gross weight: 10 kg

Lead time

15 days;

Origin

Shanghai,

ChinaSoftware functions

real-time status display, quick frequency/flow settings, independent input/output flow adjustment, dual-channel sensor data acquisition, differential pressure curve analysis, raw data export (

TXT)Applications

hemodynamic simulation for endovascular training, full-body vascular models and other simulation setups
