Fully automated coagulation analyzer SF-8050
2. Viscosity based (Mechanical clotting) assay, immunoturbidimetric assay, chromogenic assay. 3. External barcode and printer (not provided), LIS support. 4. Original reagents, cuvettes and solution for better results
Overview
2. Viscosity based (Mechanical clotting) assay, immunoturbidimetric assay, chromogenic assay. 3.
External barcode and printer (not provided), LIS support. 4. Original reagents, cuvettes and solution for better results.
Product Detail Analyzer Introduction SF-8050 use voltage 100-240 VAC. SF-8050 can be used for clinical test and pre-operative screening. Hospitals and medical scientific researchers also can use SF-8050.
Which adopts coagulation and immunoturbidimetry, chromogenic method to test the clotting of plasma. The instrument shows that clotting measurement value is the clotting time (in seconds). If the test item is calibrated by calibration plasma, it can also display other related results.

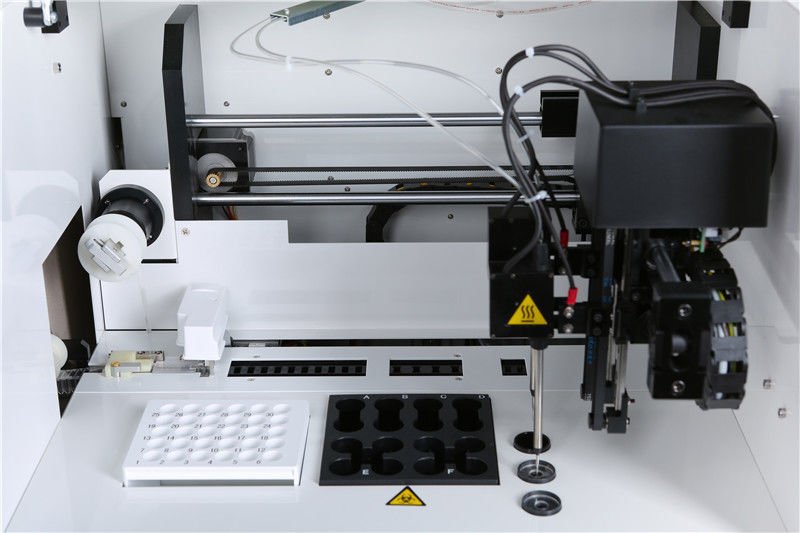

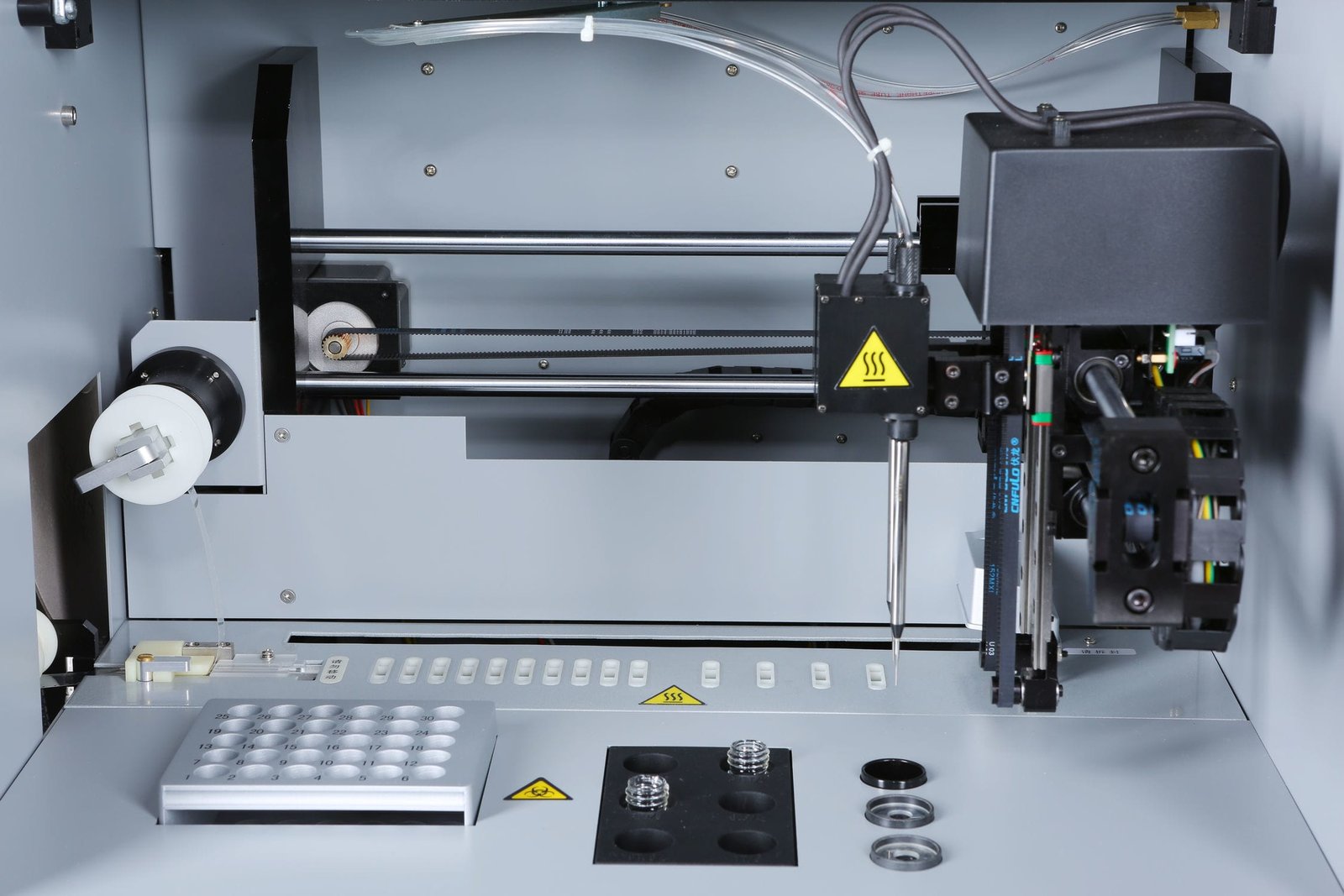

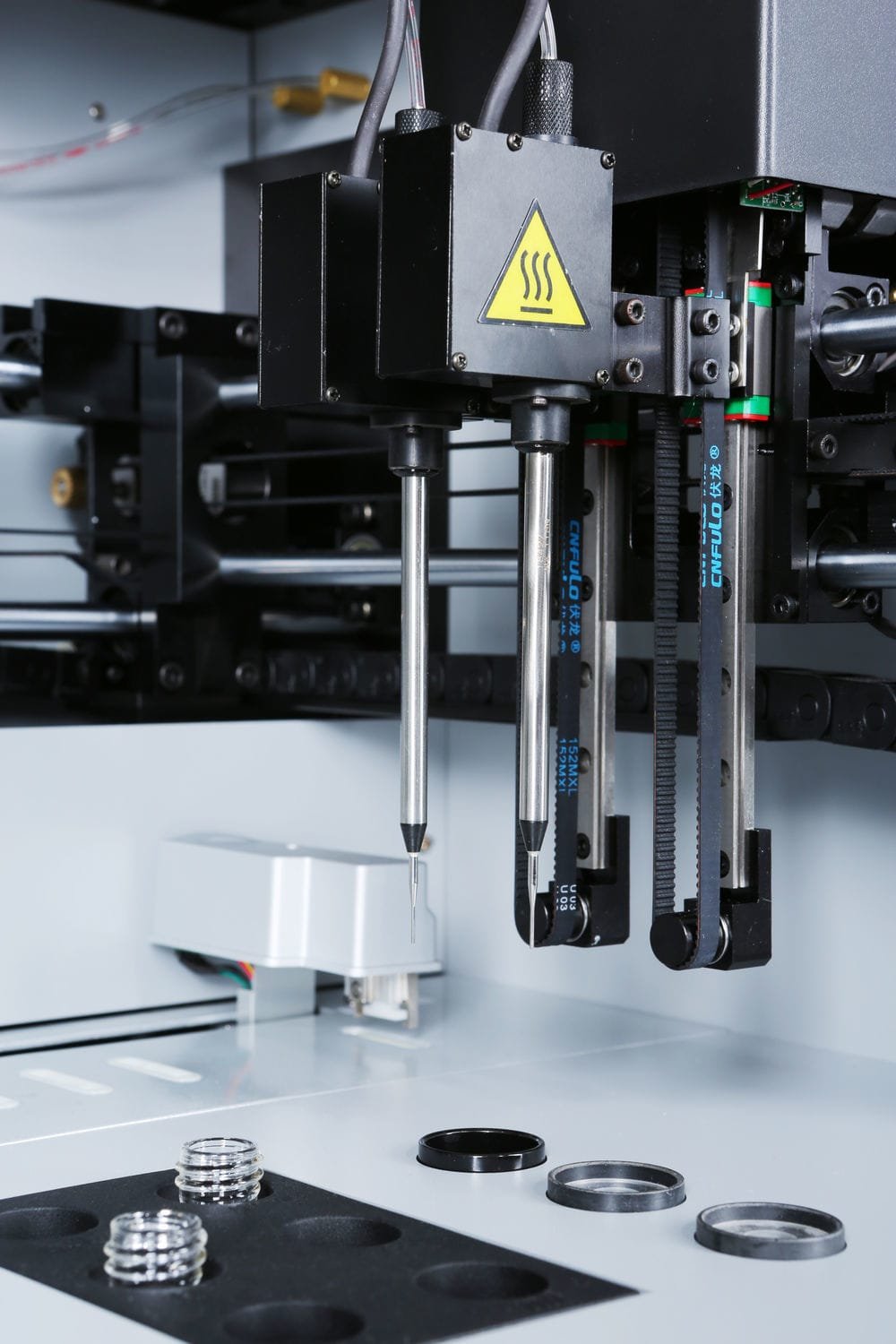

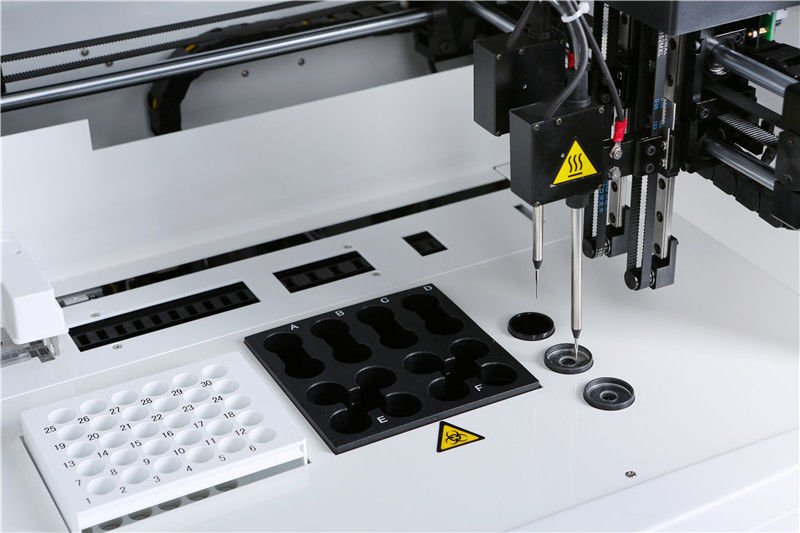

The product is made of sampling probe movable unit, cleaning unit, cuvettes movable unit, heating and cooling unit, test unit, operation-displayed unit, RS232 interface (used for printer and transfer date to Computer). Technical and experienced staffs and analyzers of high quality and strict quality management are the guarantee of manufacture of SF-8050 and good quality.
We guarantee each instrument inspected and tested strictly. SF-8050 meets China national standard, industry standard, enterprise standard and IEC standard. working principle 1.
Coagulation method: adopts double magnetic circuit magnetic bead coagulation method, which is carried out on the basis of the continuous increase of the measured plasma viscosity. The movement of the bottom of the measuring cup along a curved track detects an increase in plasma viscosity. Independent coils on both sides of the detection cup produce opposite electromagnetic field drives moving magnetic beads movement
