Flow analyzer PF-300
The FlowAnalyser PF-300 is our premium bench-top ventilator tester designed for biomedical engineers, independent service providers, and anesthesia and respiratory equipment manufacturers. It offers portability and pr
Overview
The FlowAnalyser PF-300 is our premium bench-top ventilator tester designed for biomedical engineers, independent service providers, and anesthesia and respiratory equipment manufacturers. It offers portability and precision to meet your needs. The PF-300 can measure bi-directional flow, pressures, temperature, humidity, and oxygen.
It provides precise measuring modes for adult, pediatric, and high-frequency ventilators, significantly reducing test duration. Additionally, it is equipped with a remote-control interface, data storage, and an internal battery. This versatile device enables the testing, verification, and calibration of various medical equipment that generates pressure or produces flow, particularly ventilators and anesthesia machines.

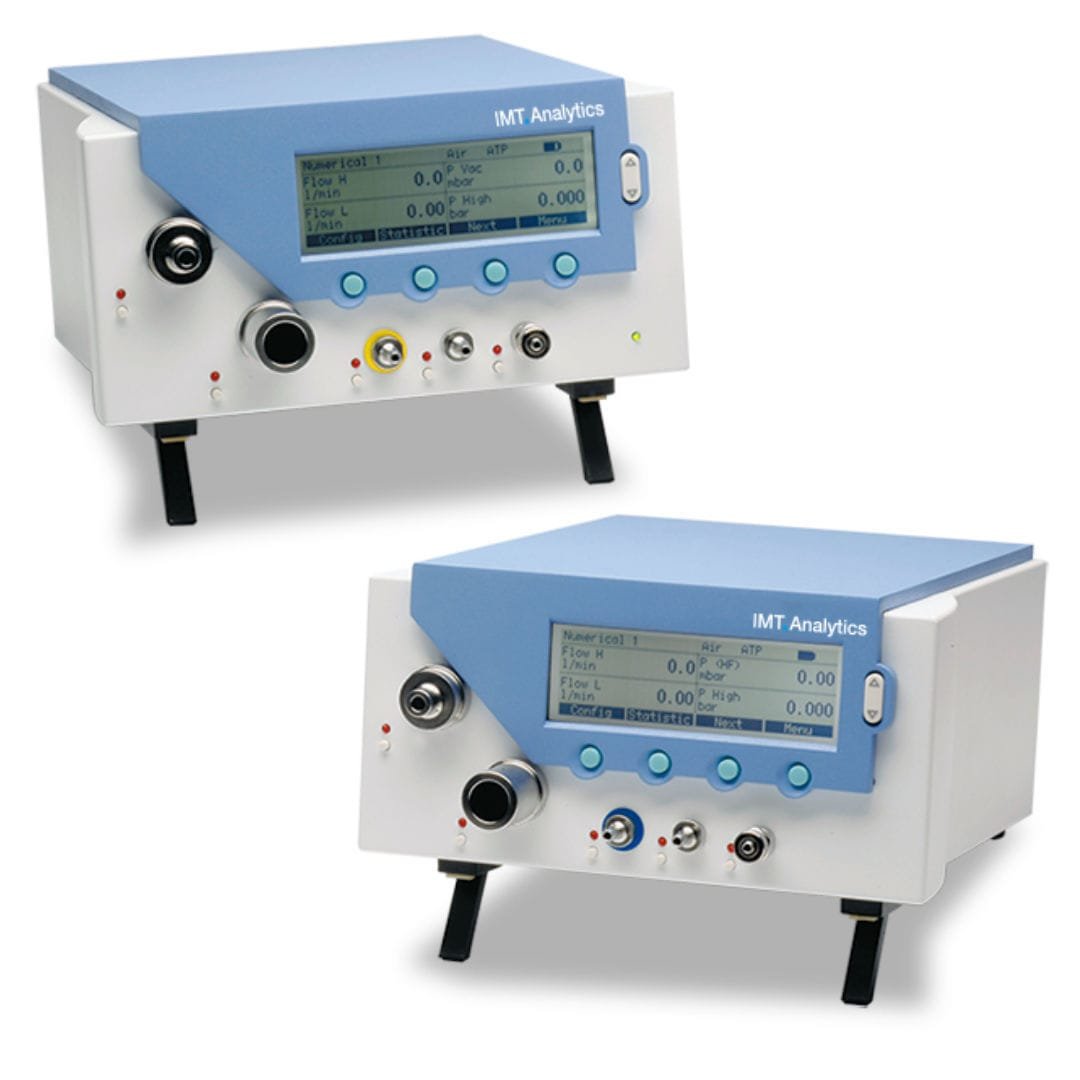

The FlowAnalyser PF-301 VAC and PF-302 LOW devices are options for specific testing requirements. The PF-301 VAC measures pressures up to ±1000mbar, enabling vacuum and flow measurements with a dedicated connector. The FlowAnalyser PF-302 LOW is designed for precise low-pressure measurements, measuring from 0 to 5 mbar with extended accuracy using a dedicated pressure connector.
Both versions offer the same extensive functions as the Flow Analyzer PF-300. Measurement The PF-300 measures the highest accuracy, with less than 1.75% deviation in readings for two channels: 0 to 20 and 0 to 300 L/min.
The PF-300 pressure sensors measure low, high, differential, vacuum, and barometric pressure. It offers many parameters for testing any respiratory device, including high-frequency oscillation stroke rates up to 16.66 Hz
