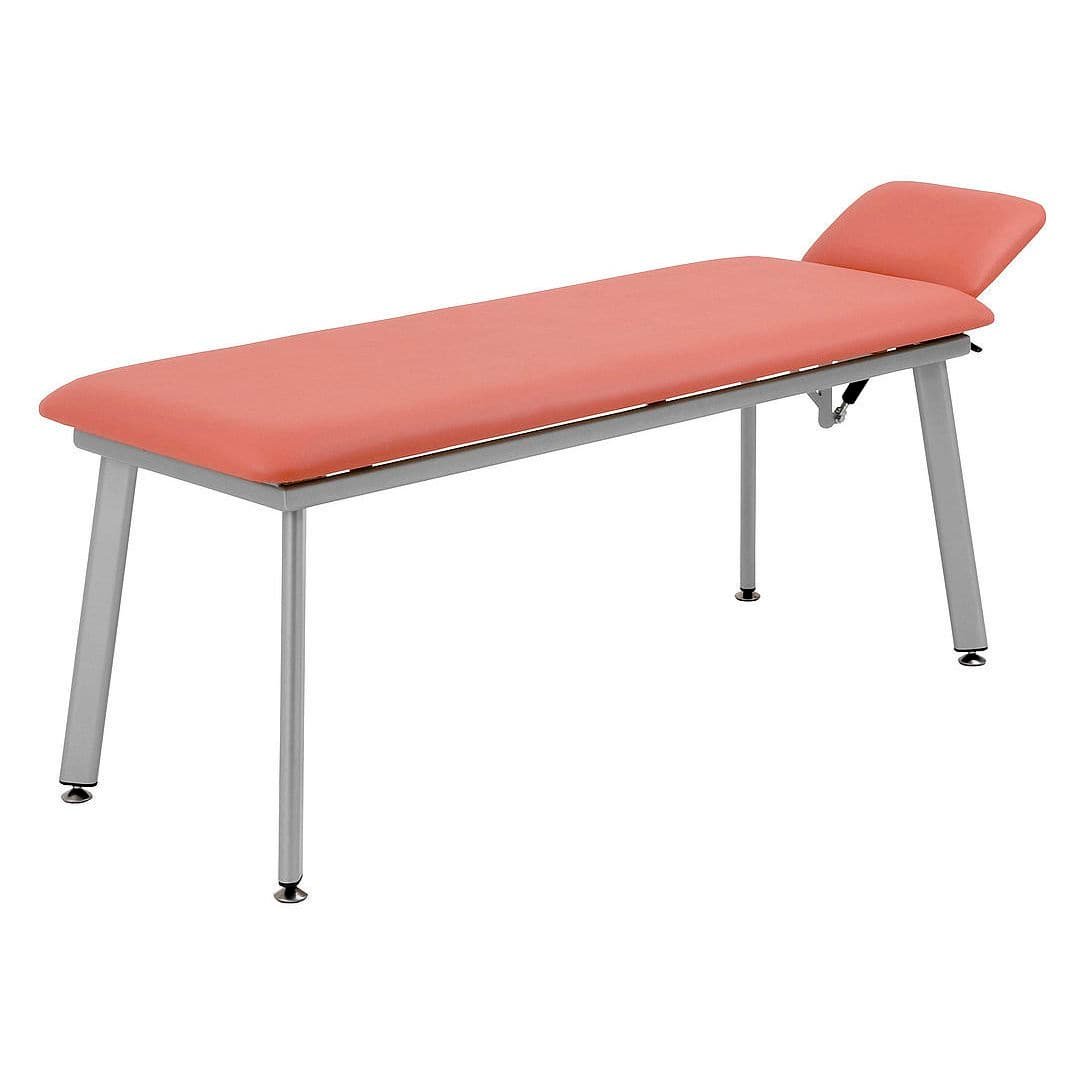

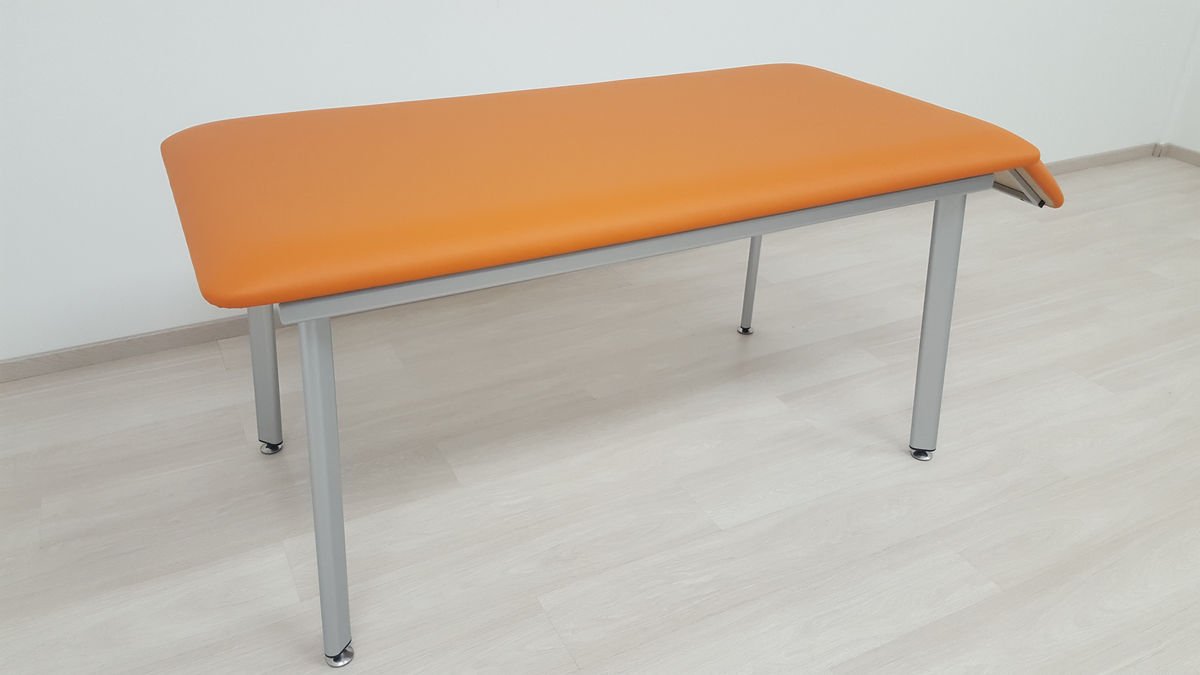

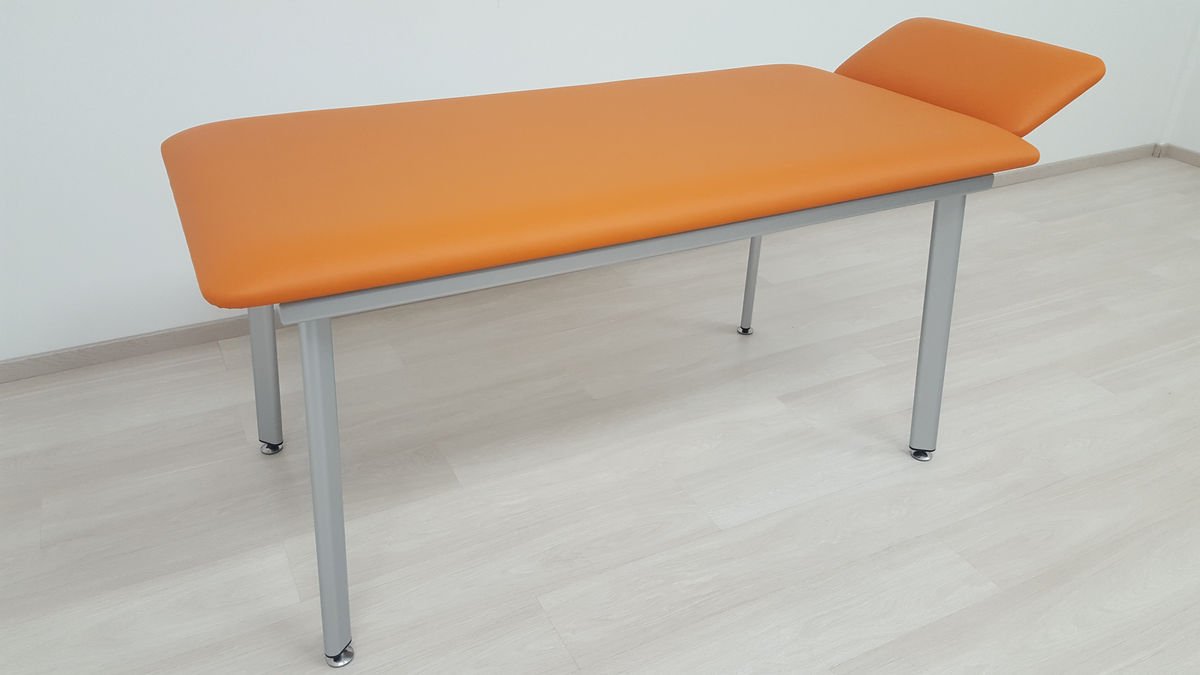

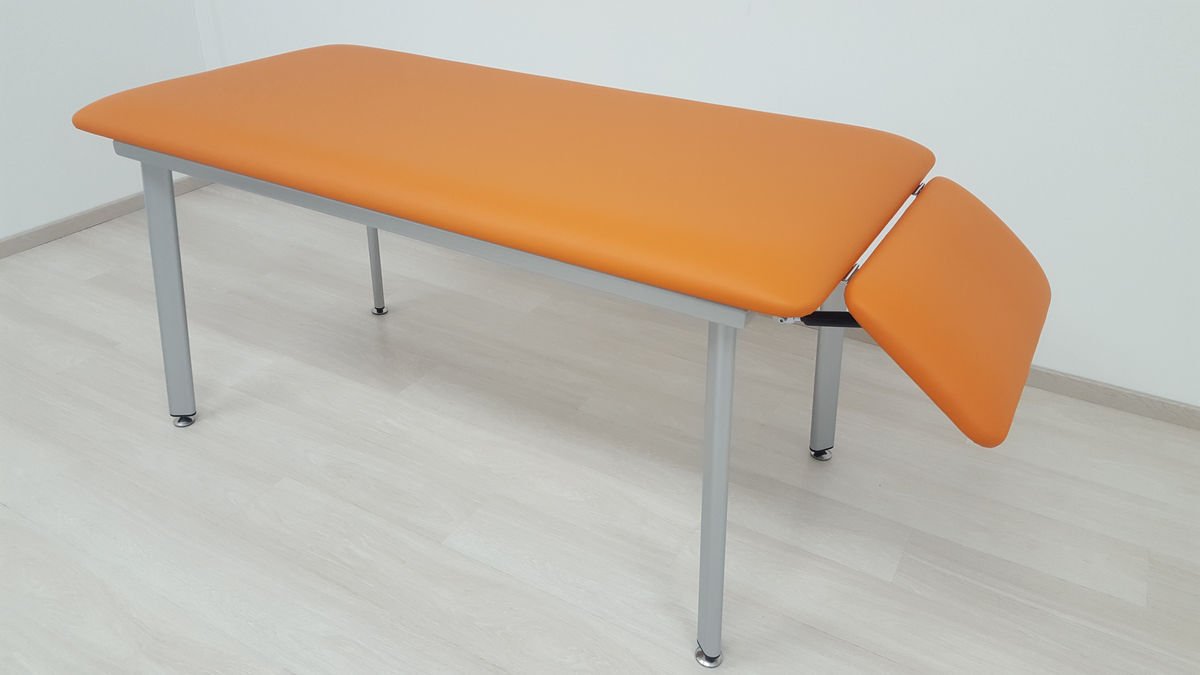

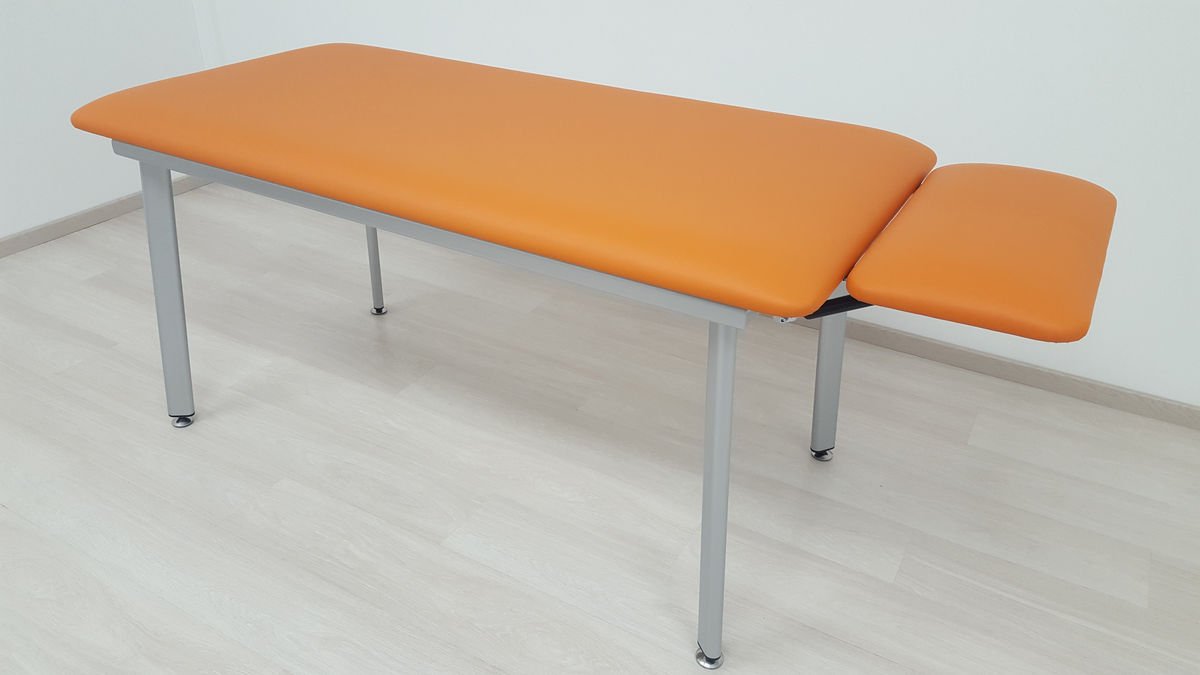

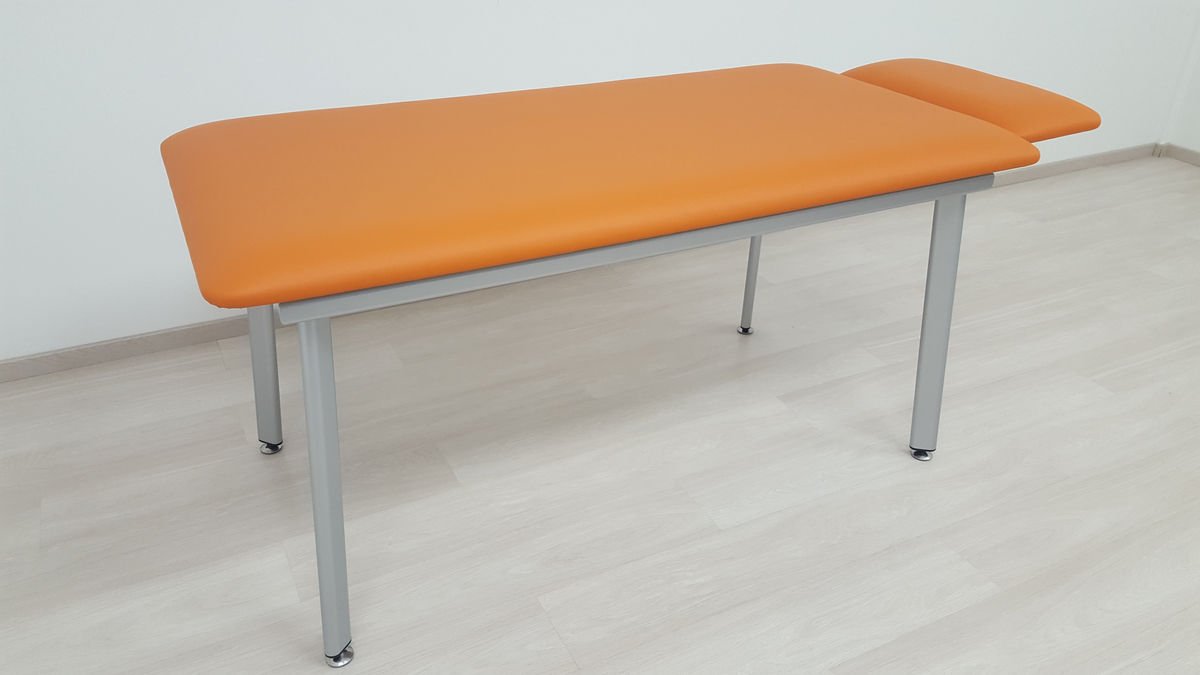

Examination table with adjustable backrest RU-1062
Overview The RU-1062 and RUL-6000 treatment tables are designed for doctors' offices, clinics and medical facilities. Manufactured in Germany, they combine a flat oval steel tube frame with a two-section upholstered t
In Stock
SKU: EMH-557FF206
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- Features Frame components
- flat oval steel tube profiles, lacquered blank steel.Corner gusset plates provide stability and robustness.Two upholstery segments (headrest and main surface) with strongly rounded corners and spacer-mounted floating appearance.Four legs with levelling feet as standard for stable installation on uneven floors.
- Load capacity
- 150 kg. Standard configuration Table with lacquered frame and levelling feet on all four legs. Frame colours (standard) Light grey (RAL 7035)White aluminium (RAL 9006)Pure white (RAL 9010) Upholstery materials The artificial leather covers are tear-resistant, easy to clean and resistant to disinfectants. Multiple synthetic leather colours are available; electrically conductive synthetic leather (black) is offered as an option for equipotential bonding to the frame.
- Accessories (examples) HRM-14
- Semi-circular roll, foam-filled, Ø 200 x 400 mm, synthetic leather cover with zipper.
- HRM-14/Klett
- Semi-circular roll with Velcro fastener, Ø 200 x 400 mm.
- KKM-16
- Head wedge, foam-filled, 450 x 400 x 80/10 mm, synthetic leather cover with zipper.
- KVG
- Headrest adjustment via gas pressure spring (instead of ratchet), one-hand operation; release button on head cushion (not retrofittable).
- PG-220 / PG-260
- Patient belts for table widths 650 mm and 800 mm, synthetic leather with Velcro.
- PU-5500
- Chrome-plated paper roll holder for mounting under the head end (length 545 mm).
- RLM-20 / RM-12
- Knee roll Ø 180 x 560 mm; neck roll Ø 140 x 400 mm, foam-filled, synthetic leather cover with zipper.
- Technical data Models
- RU-1062 |
- RUL-6000 Frame
- Lacquered blank steel
- Length (headrest / main section)
- 1,920 mm (320 / 1,600 mm) | 1,900 mm (500 / 1,400 mm)
- Width
- 620 mm
- Height
- 700 mm | 680 mm
- Upholstery segments
- 2 sections
- Upholstery thickness
- 64 mm | 47 mm
- Headrest adjustment
- -25° / +30° (gas spring) | +30° (ratchet)
- Load capacity
- 150 kg
- Levelling feet
- yes
Technical Specifications
- Intended use
- medical examinations and therapies.
- Frame
- flat oval steel tube profiles with gusset plates at frame corners.
- Upholstery
- two segments with rounded corners; RU-1062 = 64 mm, RUL-6000 = 47 mm.
- Headrest
- RU-1062 gas spring adjustment allowing negative angle for cervical extension; RUL-6000 ratchet adjustment to +30°.
- Standard equipment
- levelling feet; optional conductive upholstery and accessory items as listed
