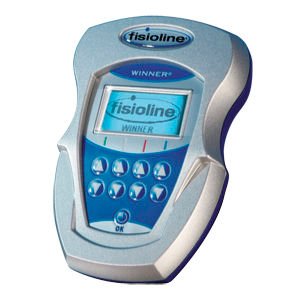

Electric stimulator WINNER®
WINNER® is a neuromuscolar stimulator for palmar electroanalgesia of the last generation with an ergonomic modern design, suitable for sports people, fitness and wellness fans. The result of the constant research of a
In Stock
SKU: EMH-41BA1576
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- COMMERCIAL CLASSIFICATION
- neuromuscular stimulator
- REFERENCE STANDARD
- EN 60601-1 (IEC 60601-1), EN 60601-2-10 (IEC 60601-2-10),
- CEI EN 60601-1-11 (IEC 60601-1-11) CLASS
- appliance type BF with internal power supply and outer takeoff (
- II) STIMULATION CHANNELS
- 4 with independent current intensity adjustment
- OUTPUT STAGES
- CC current controlled E
- LECTRODE DEFECT CONTROLL STIMULATION TYPE
- synchronous and asynchronous (AGONIST/AN
- TAGONIST function) STIMULATION WAVE SHAPE
- two-phase rectangular symmetrical compensated
- STIMULATION PULSE DURATION
- 50 µs ÷ 500 µs
- STIMULATION FREQUENCY
- 1Hz ÷ 200
- Hz OUTPUT CURRENT
- 120m
- A peak (240mA peak to peak) ENERGY SOURCE
- 8.4V Ni-MH battery (equipped with outer plug)
- OUTER POWER SUPPLY
- outer power cord 100-240
- Vac 50-60 Hz DIMENSIONS
- 170 x 100 x 40 mm
- WEIGHT
- 450g (including battery)
- CE MARKING
- the device complies with the requirements specified in the Directive 93/42/EEC, modified by the Directive 2007/47/EC, and in the Directive 2004/108/EC
