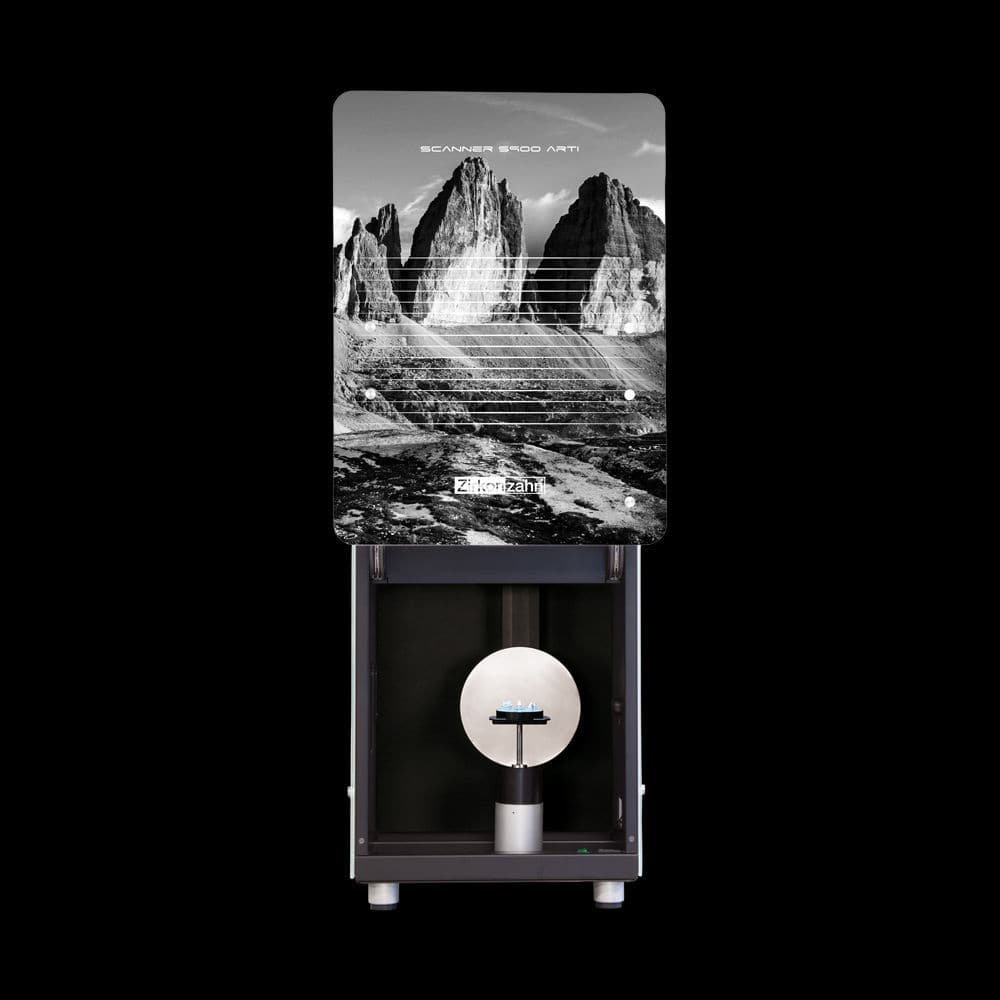

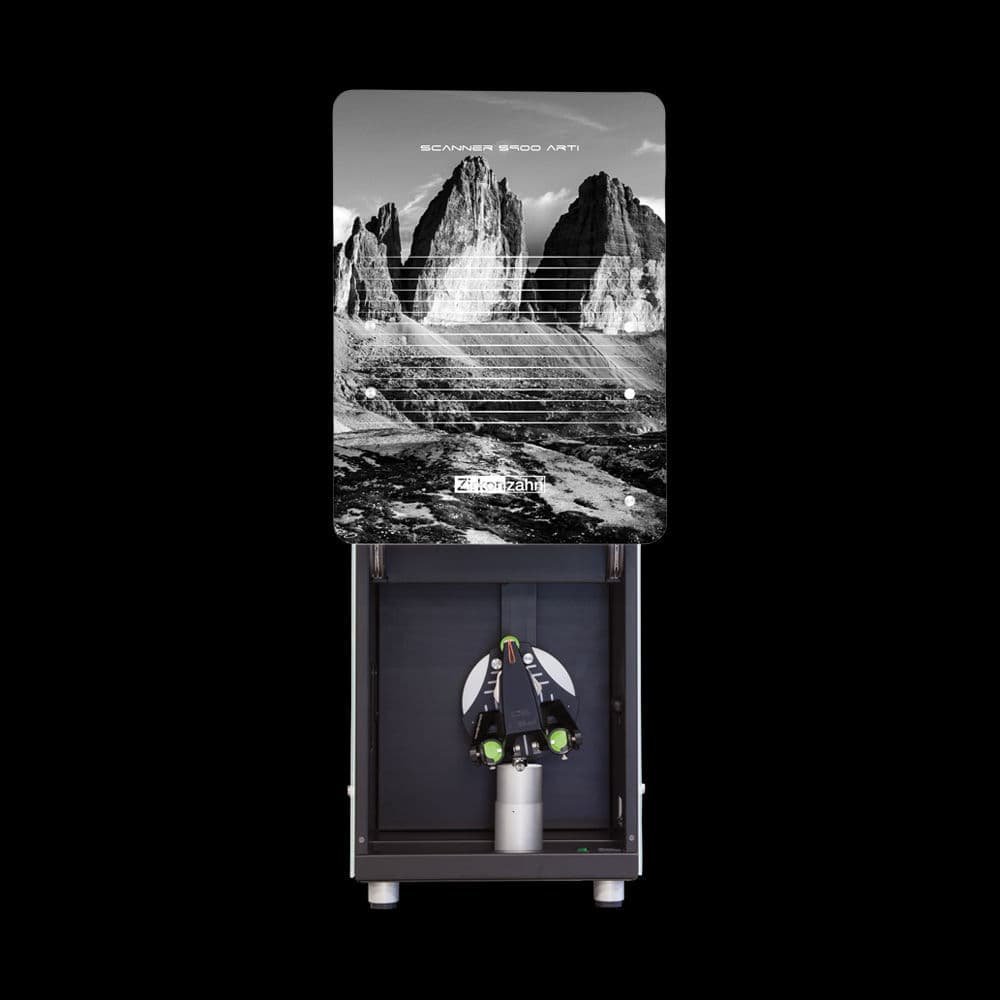

Dental CAD/CAM scanner S900 ARTI

Overview

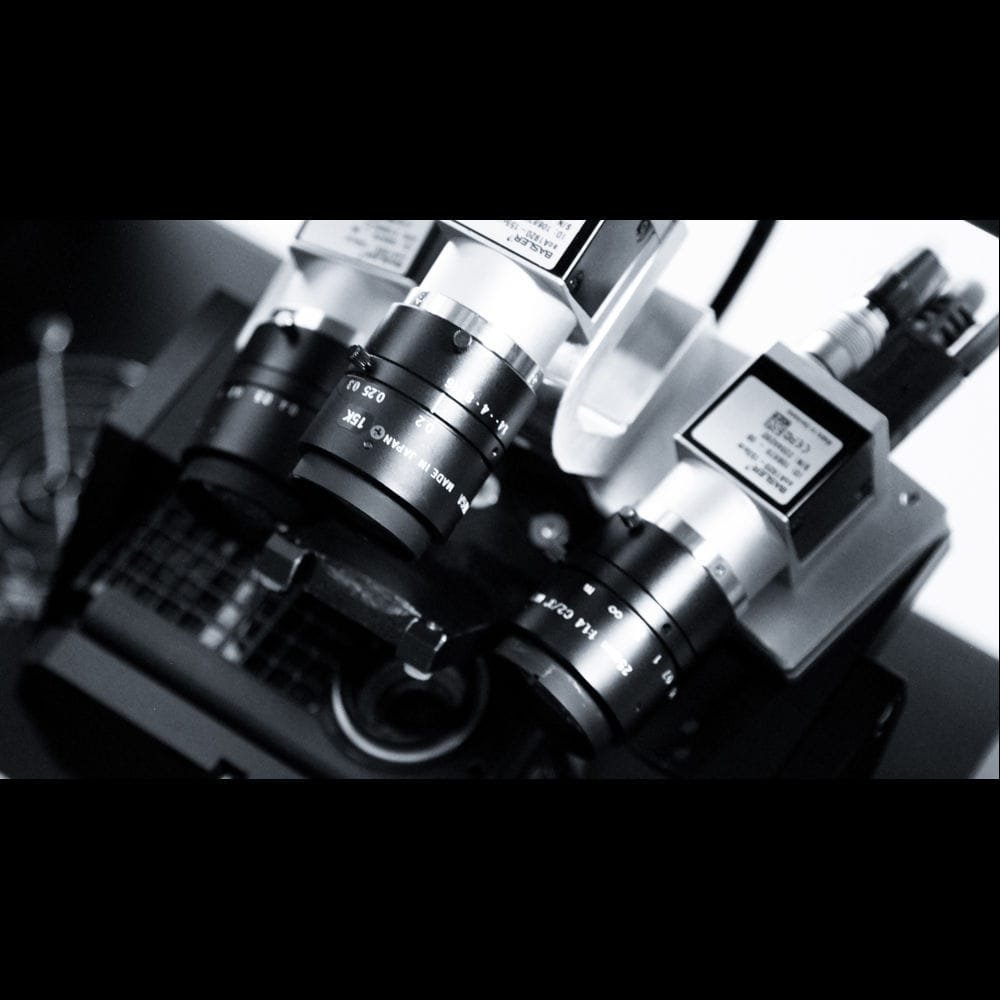

Fully automated optical structured-light Scanner S900 ARTI with scanning software PC and screen Basic modeling software Zirkonzahn.Modellier Characteristics Fully automated optical structured-light scanner with three high-resolution high-speed cameras with particularly high scan data density and less rescanning Even faster scanning thanks to further developed software technology (starting from Zirkonzahn.Scan 5051) High scanning precision: ≤ 10 μm Particularly large scanning area (115 x 78; format 16:9) for articulator scans and the capture of the entire model in a single scanning process; every kind of lab articulator can be measured and stored in the software The placement of the third camera allows a deeper detection area for interdental spaces and for impressions Scannable objects: no limitations, i.a. individual dies, arch segments, full arch models, bite records, opposing dentition (mush bites, entire jaw), wax-ups, veneers, abutments, occlusal registrations, bite rims, etc.

Intelligent data import/export function with open interface Double-Scan function Integrated colour scan option – useful for example when creating partial dentures Extensive matching functions, for example group matching, marker matching, negative matching Stable high-precision gears Scanning area is protected from unfavourable lighting conditions and dust Universal capturing of models with intelligent model acquisition concepts and fast clamping devices (Easy-Fix-System) Easy positioning of the scan model with the help of a laser point
