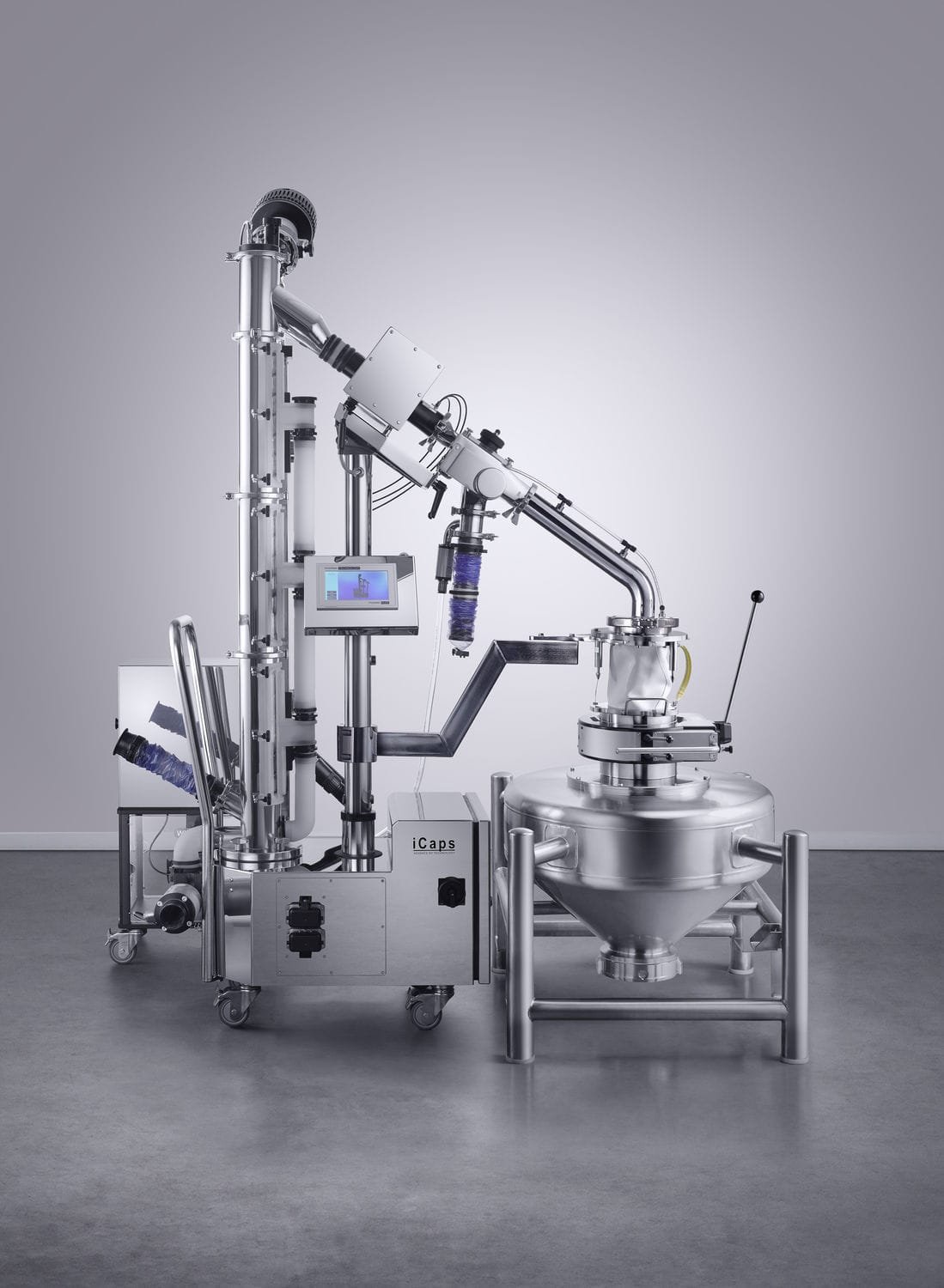

Capsule polisher iCaps DT

Overview

The iCaps range offers great flexibility, enhanced output, and superior polishing efficiency.

Thanks to its modular design, the iCaps is customizable to meet specific customer requirements Key benefits Total emptying with all capsule formats and weight 4 elevation heights from 1000 mm to 2200 mm FDA-approved light components to handle and wash Ergonomic, Efficient, Robust, Reliable No risk of cross contamination Central HMI with OPC UA, CFR 21 Part 11 compliant The modular design offers 4 different conveying heights: 1000, 1400, 1800, and 2200mm.

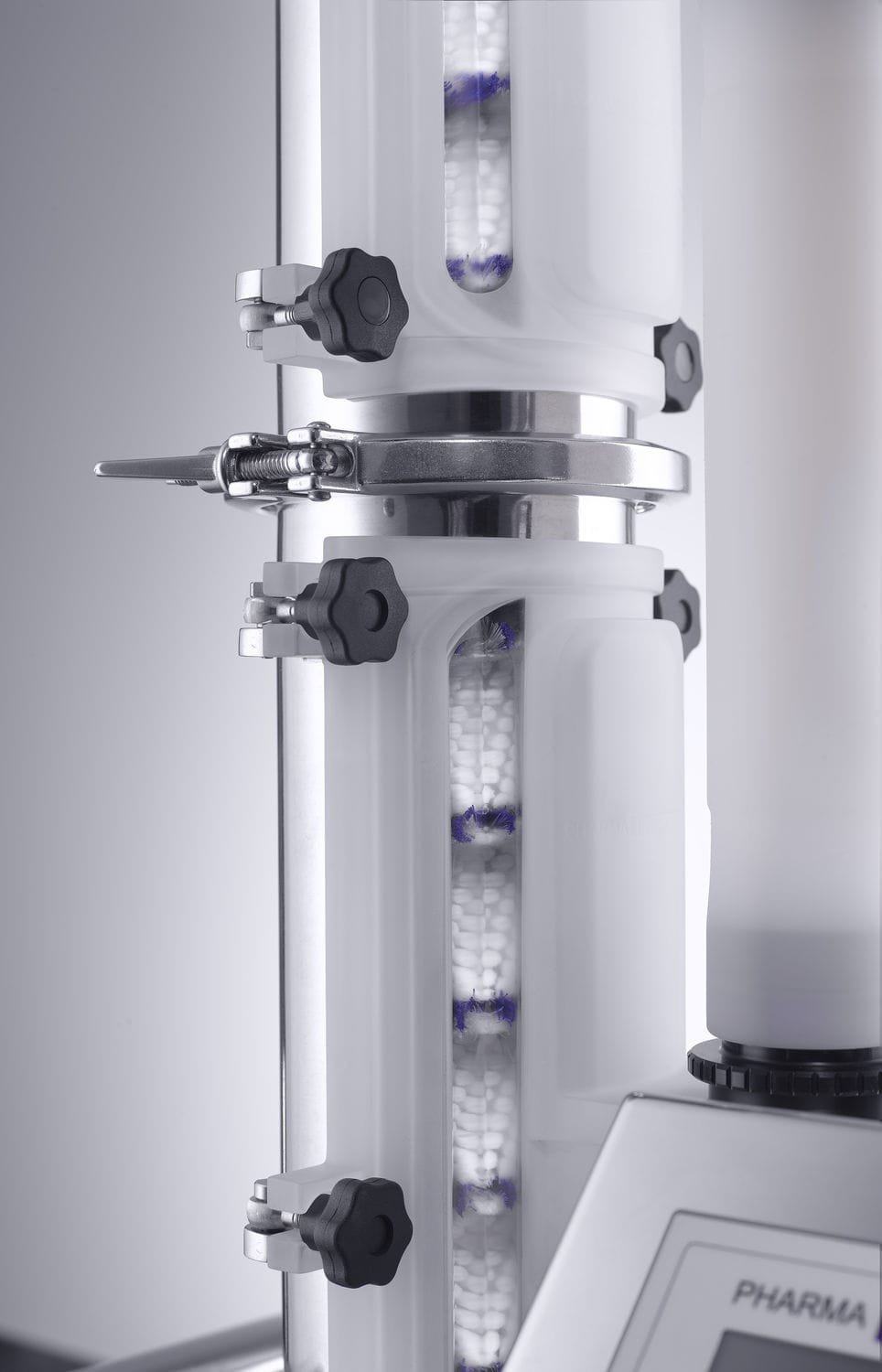

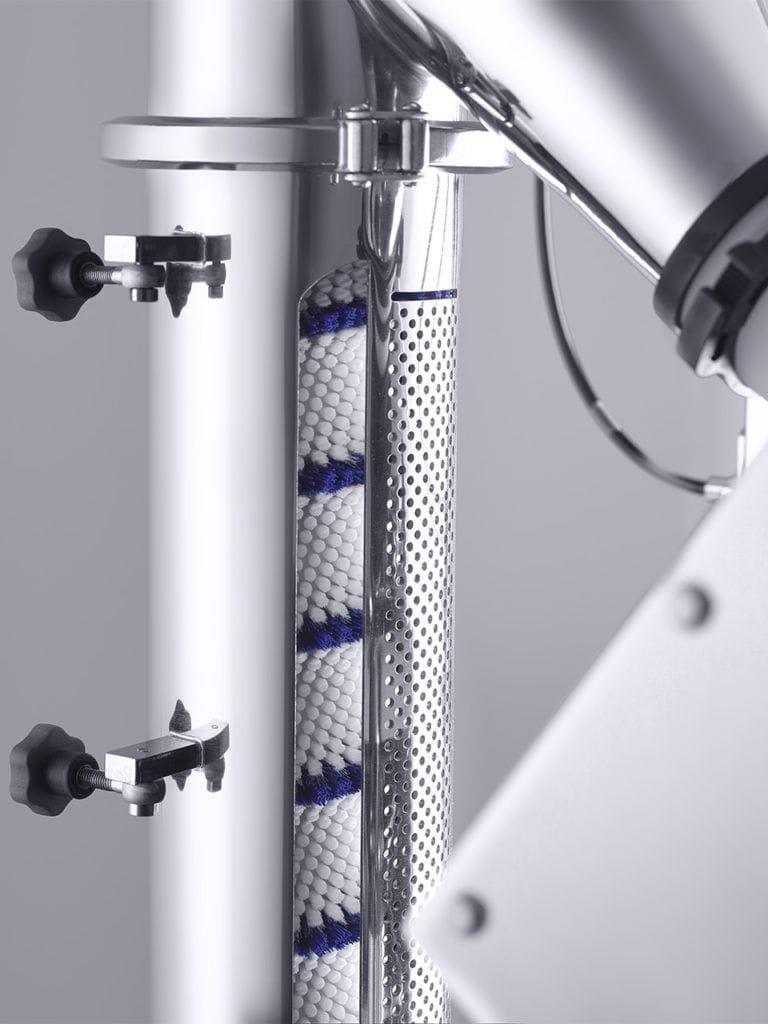

Each section includes a rotating brush, specifically designed for capsule elevation, dedusting, and polishing of any size and shape, from 00 to 5. The patented technology combines a homogeneous vacuum flow on one side, which provides very high polishing performances, and a unique aspiration window design on the other, to ensure complete emptying of any capsule type.

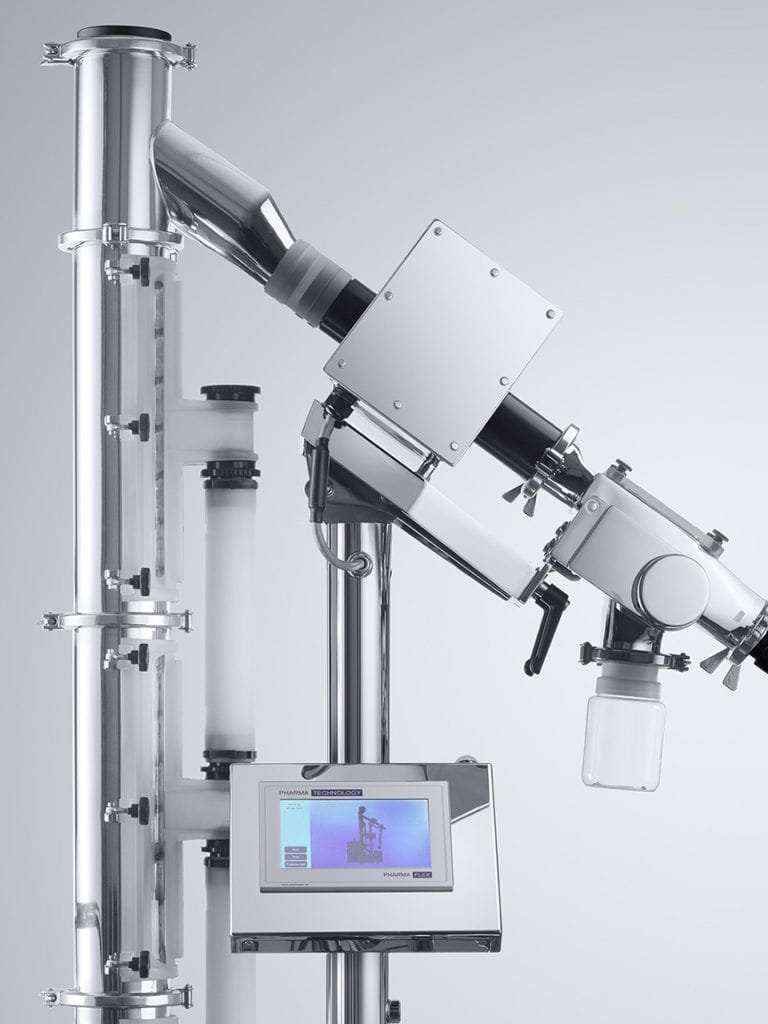

Utmost care has been taken to simplify the design to reduce the number of parts to assemble and disassemble and to avoid the use of tools. Combinable with Ceia or Lock metal detectors, the “DT” Dust Tight model reduces operator exposure to product and dust contamination in the production room. Dust Tight systems are modularly upgradable to “C” Containment and “HC” High Containment washable solutions.

Additional options: Sampling Gate Capsules diverter Empty Capsule Eliminator Automatic testing for metal detector 2-parameters IPC capsule tester (weight and length)
