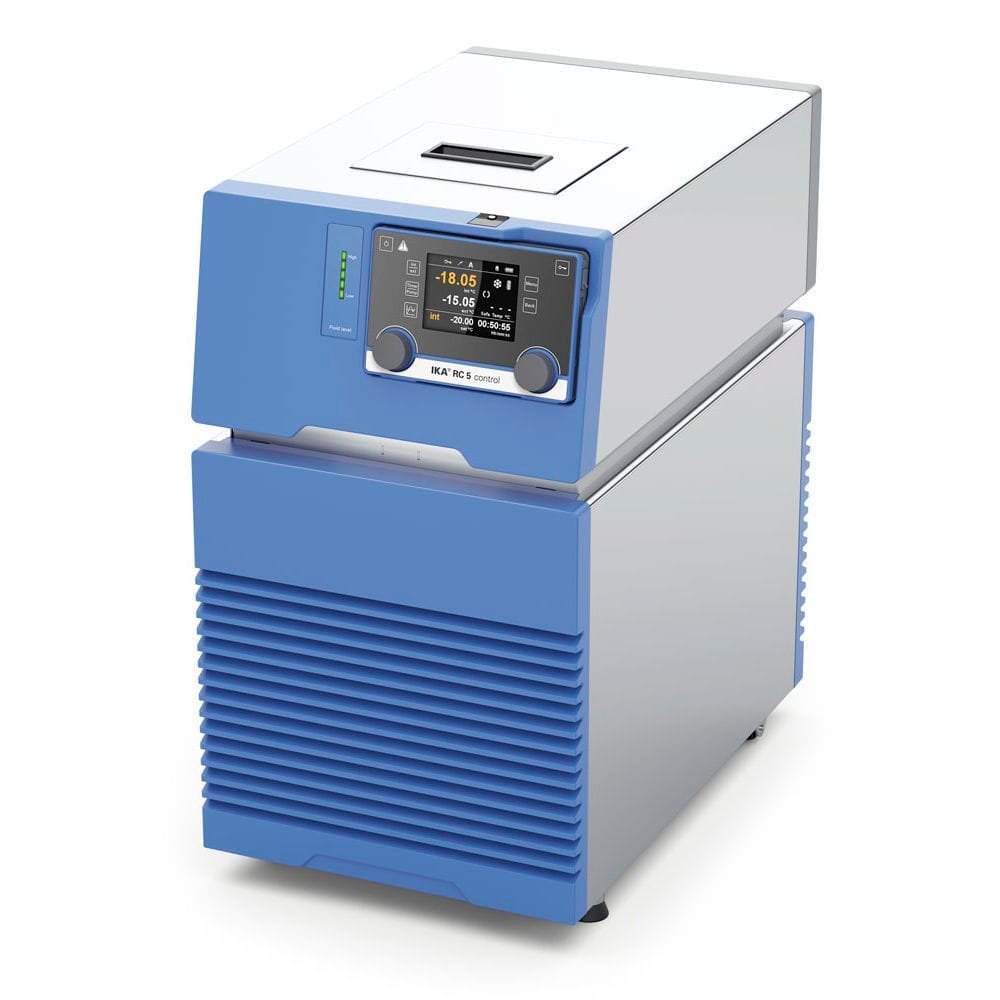

Benchtop laboratory chiller RC 5 control
Powerful recirculating chiller, designed for external cooling applications up to -30°C. The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a com
In Stock
SKU: EMH-F343087F
Individual OrdersSuitable for home or personal requirements
Professional SupplyFor clinics, labs and healthcare teams
Bulk & Trade OrdersFor hospitals, resellers and institutions
✓Model confirmationVerify specifications and accessories
✓Flexible quantitiesRequest one unit or a larger quantity
✓Delivery planningShare your location for available options
The displayed information is a starting reference. Final model, accessories, availability, price and delivery terms are confirmed before purchase.
Overview
- Powerful recirculating chiller, designed for external cooling applications up to -30°C. The energy-efficient chiller is operated with an eco-friendly refrigerant and reaches a high power density. This results in a comparatively small working space in the lab. The speed-controlled PEEK pump allows an indirect, continuous adjustment of the maximum pressure and flow rate. Due to its excellent temperature stability of about ± 0,1 K, the RC 5 can handle even sophisticated applications. The isolated, high-quality 7l bath has an integrated hopper and drain valve, ensuring a safe and clean handling of the thermofluid. A hose can be connected to empty the bath in order to avoid direct contact with the thermofluid. The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter. RC 5 control comes with a Wireless Controller (WiCo). Processes can be automated and simplified through 10 freely programmable temperature ramps with 10 steps each.
- Speed-controlled refrigeration system with 1400 W cooling capacity (@20°C)
- Natural thermofluid R290
- Excellent temperature stability of about ± 0,1K (@-10°C)
- Speed-controlled pump made of PEEK: (0,6 bar; 31l/min)
- Digital level indicator Interfaces:
- RS 232 and USB Appliance type: Recirculating chiller Cooling agent: R290 Cooling agent quantity: 90 g Cooling agent pressure max.: 21 bar Cooling capacity (@20°C): 1400 W Cooling capacity (@10°C): 1200 W Cooling capacity (@0°C): 950 W Cooling capacity (@-10°C): 650 W Cooling capacity (@-20°C): 450 W Cooling capacity (@-30°C): 200 W
