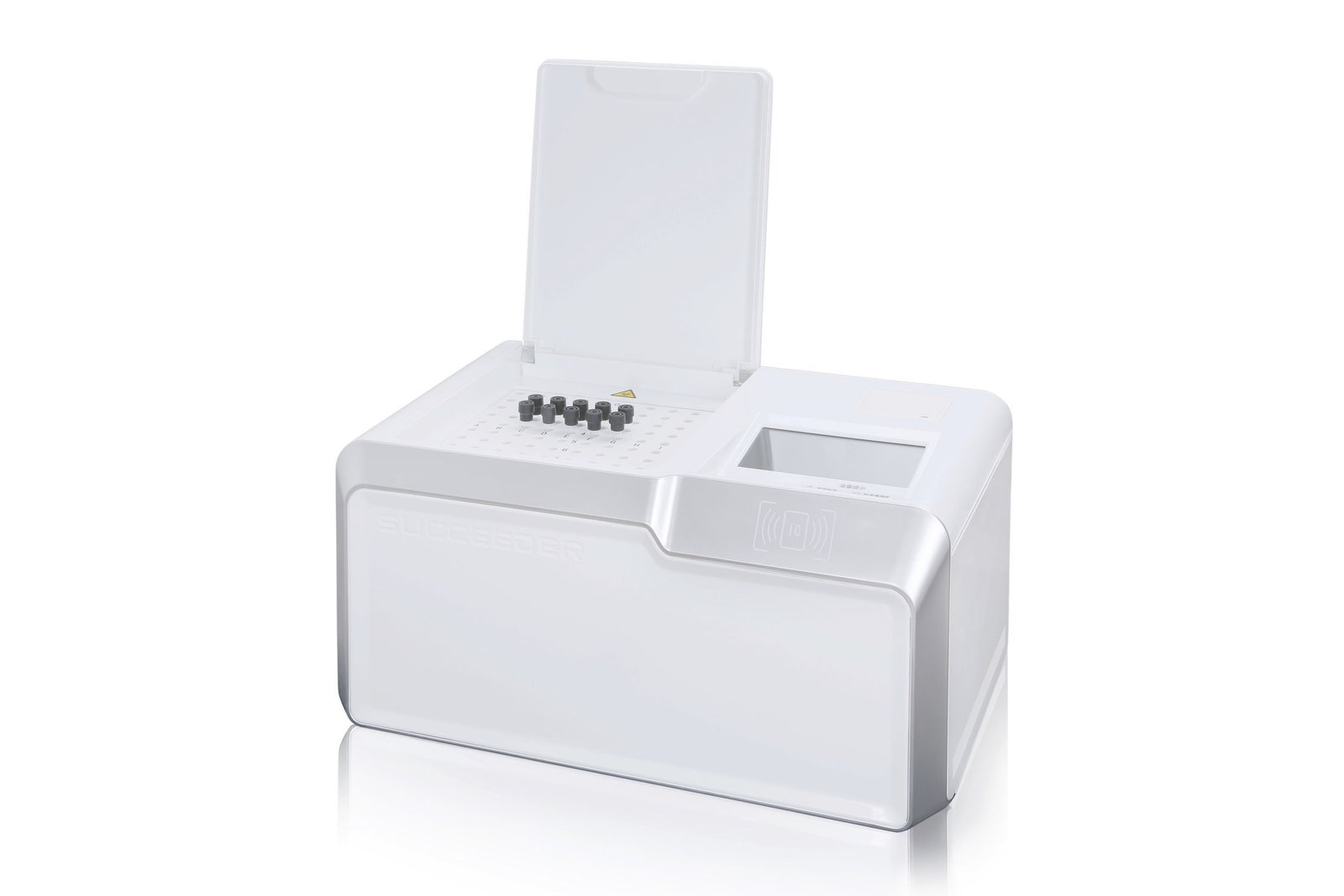

Automatic ESR analyzer SD-1000

Overview

• 1. ESR (westergren and wintrobe Value) and HCT. 2. 100 testing channels. 3. High speed, easy operation, accurate testing result. 4. Colorful LCD with touch screen. 5, ESR data reading in 60minutes and 30minutes. Product Detail Features 1. Support both Hematocrit (HCT) and Erythrocyte Sedimentation Rate (ESR). 3. Internal printer, LIS support. 4. Cost effective with excellent quality. Technical Specification 2. Test principle: photoelectric detector. 3. Test items: hematocrit (HCT) and erythrocyte sedimentation rate (ESR). 4. Test time: ESR 30 minutes (default) / 60 minutes selectable. 5. ESR test range: (0-160) mm/h. 6. HCT test range: 0.2～1. 7. Sample amount: 1ml. 8. Independent test channel with fast testing. 9. Storage: unlimited. 10. Screen: Touch screen LCD can display HCT and ESR results. 11. Data management, analysis and reporting software. 12. Build-in printer, External barcode reader. 13. Data transmission: Barcode port, USB / LIS port, can support HIS/LIS system. 14. Tube require: outer diameter φ(8±0.1)mm, tube height
• =110mm. 15. Weight: 16kg 16. Dimension: (l×w×h, mm) 560×360×300 Analyzer Introduction SD-1000 ESR analyzer uses voltage of 100-240VAC, which adapts to all level hospitals and medical research office, it’s used to test erythrocyte sedimentation rate (ESR) and HCT. Technical and experienced staffs, high quality analyzer and strict quality control are the guarantee of manufacture. We guarantee each instrument inspected and tested strictly. This machine meets country standard, industry standard, and registered products standard. Application: Used for measuring Erythrocyte Sedimentation Rate (ESR), hematocrit (HCT)
