70-channel polysomnograph SOMNO HD
4kHz sample rate with 24 Bit resolution Automatic sensor & electrode recognition bio-calibration & impedance check at the bedside Shortest EEG Electrode with Continuous Impedance Check Cuffless Continuous Blood Pressu
Overview
4kHz sample rate with 24 Bit resolution Automatic sensor & electrode recognition bio-calibration & impedance check at the bedside Shortest EEG Electrode with Continuous Impedance Check Cuffless Continuous Blood Pressure Measurement The future is here – our most powerful and flexible sleep diagnostic system.
The SOMNO HD is a new generation of PSG with 55 channels (10 internal, 28 external, 17 EXG via the headbox) which can be upgraded to 70 channels, they are recorded at a resolution of up to 4 kHz per channel. Excellent signal quality goes without saying. With intelligent connect, the new montage free sensor recognition, you can connect any sensor to any slot and also change it during the measurement.

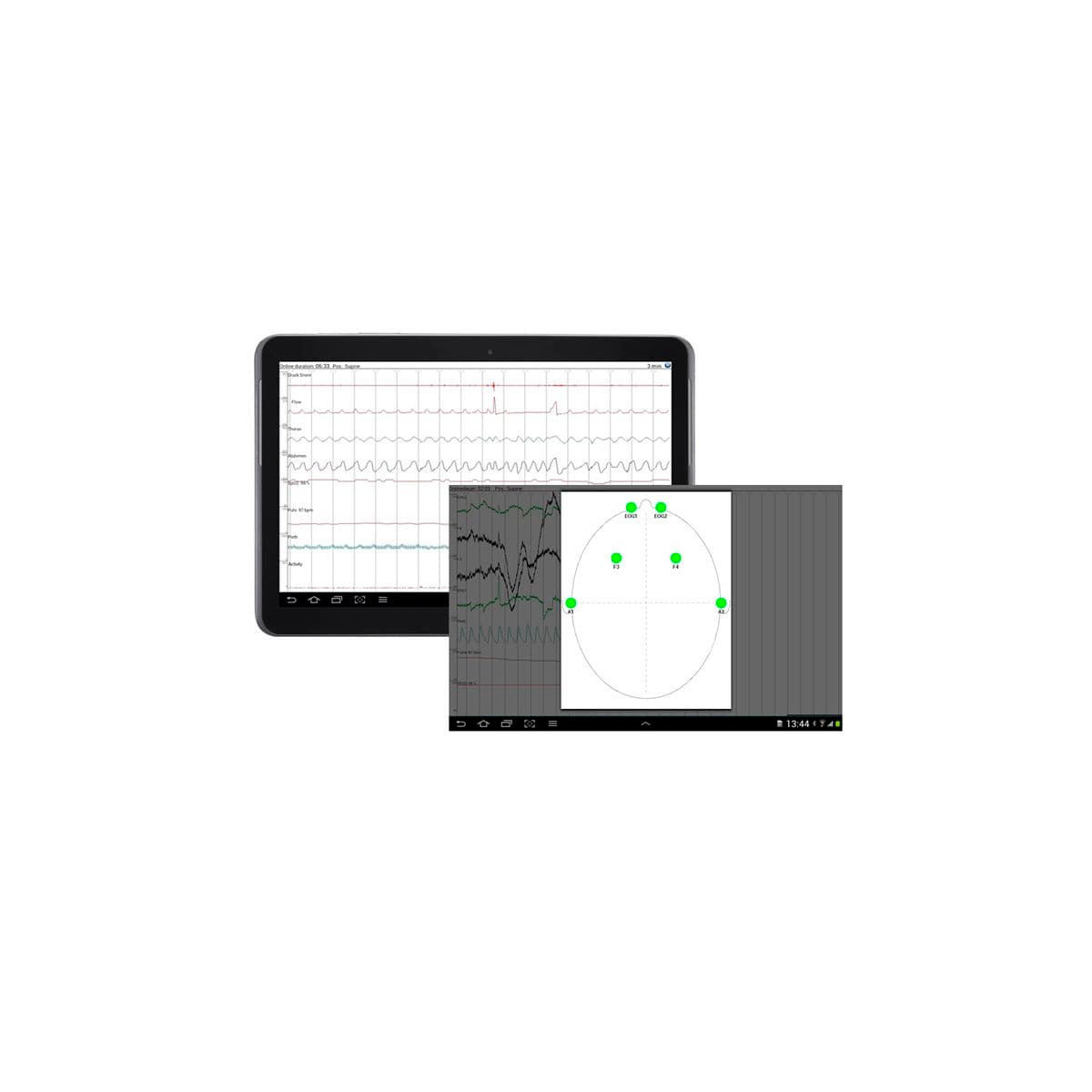

Thanks to the integrated data transmitter, the SOMNO HD plus always works wirelessly. This allows additional remote signal control of the measured data: You get a screenshot of the measured data on your smartphone, tablet or computer. This way, you always know whether a patient’s home measurement is working properly, giving you peace of mind.
We offer the first wireless EMG sensors for PLM conduction for additional patient comfort.
Compact Home & Ambulatory PSG Device 2 PLM Pressure (Flow & Snore) Flow Thermistor Effort (Thorax / Abdomen) Intercostal EMG Efforts SpO2, Pulse rate Body position Movement (Sleep / Wake Determination) CPAP/BiPAP – Pressure Microphone The SOMNO HD is capable of accepting up to 6 wireless sensors – the first of these to be made available is the wireless PLM sensor package. More will follow in the future.
Why use a Wireless Sensor? Time saving during application More freedom of movement for the patients
